High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
High Pressure Wear Resistant Flexible Suction Hose Pipe For Swimming Pool
Specifications
Brand Name :
ET
Model Number :
1"-6''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000M
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
Name :
Suction hose
Thickness :
3mm-12mm
Working Temperature :
-5℃ to +65℃
Features :
Abrasion And Chemical Resistant, Impact And Crash Resistant
Working pressur :
4bar to 8bar
Used for :
Industry, Agriculture And Construction
Description

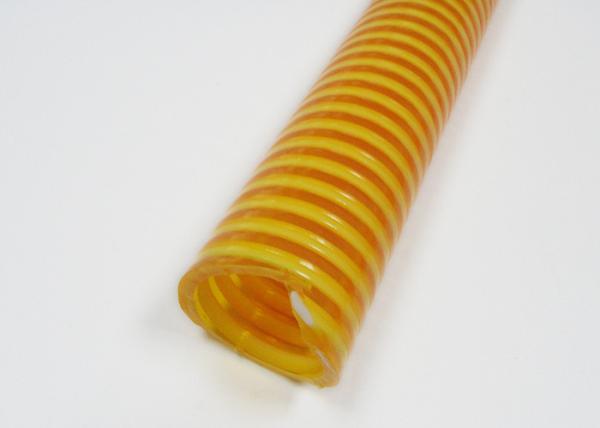

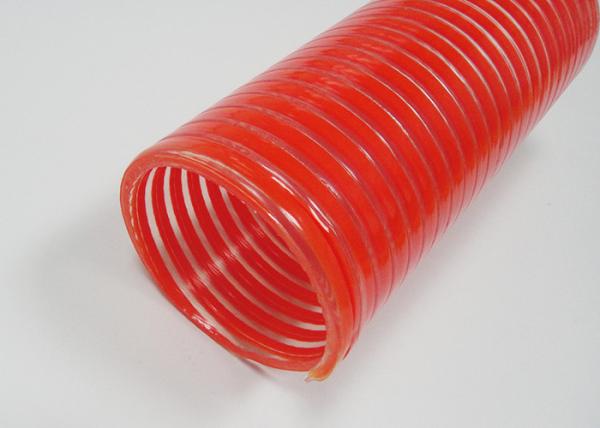

High Pressure Wear Resistant PVC Flexible Helix Suction Hose For Swimming Pool

Specification:25mm to 152mm
Color:yellow, blue, gray, red, orange, black etc.
Length:Customized
Working pressure:4bar to 8bar
Features:flexibility, weather, ozone and UV resistant
Application:sand blasting

Feature:

PVC suction hose, high-density rigid spiral structure, generally resistant to oil, alkali, weak acid and mild chemicals.

High-density rigid PVC spiral reinforcement for strength and maximum bending and crush damage resistance.

Rigid and soft, both with sufficient mechanical properties and excellent flexibility.
It is lightweight, saves material, reduces energy consumption, and is inexpensive.
The smooth bellows on the inner wall can reduce the flow resistance of the liquid in the tube and further improve the conveying capacity.
The interface is convenient, the sealing performance is good, the operation is simple, the installation is convenient, and the labor intensity is reduced.

Temperature range: -5℃ - +65℃

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.378 35 0.50 8 120 50 150
1-1/4 32 1.654 42 0.60 8 120 50 150
1-1/2 38 1.929 49 0.70 7 100 50 150
2 51 2.520 64 1.05 7 100 50 150
2-1/2 63 3.031 77 1.39 6 90 50 150
3 76 3.622 92 1.70 6 90 30 90
4 102 4.724 120 2.85 5 75 30 90
5 127 5.708 145 3.90 4 60 30 90
6 152 6.732 171 5.00 4 60 30 90
