Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Flexible Helix Reinforced Suction And Discharge Hose Customized PVC In Red Color
Specifications
Brand Name :
ET
Model Number :
PVC Suction Hose
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000ton / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
Color :
Blue, Orange, Yellow, Red, Green, Grey
Working Pressure :
2-10 bar
Working Temperature :
-5°C-65°C
Transporting Medium :
liquid, powder, granules
Thickness :
3mm-12mm
Name :
PVC Flexible Helix Suction
Description

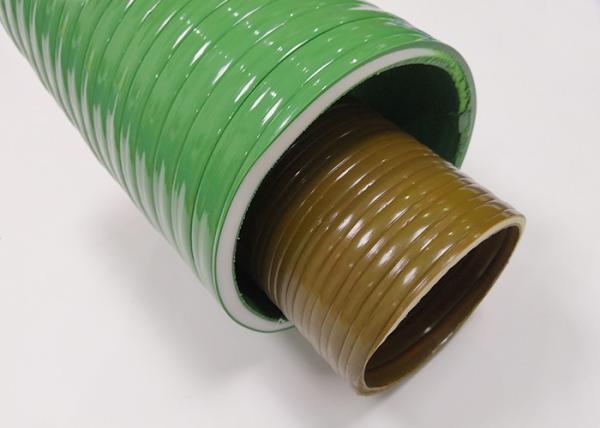

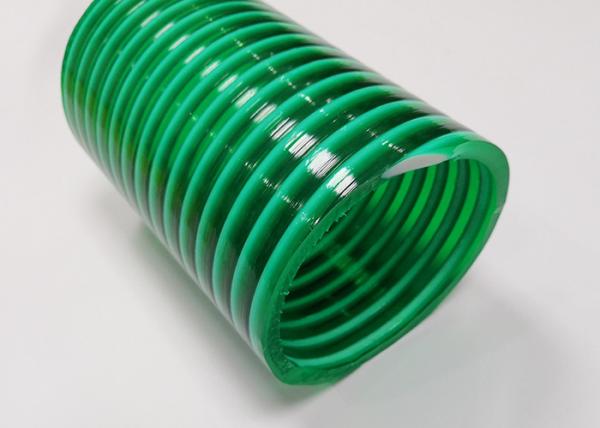

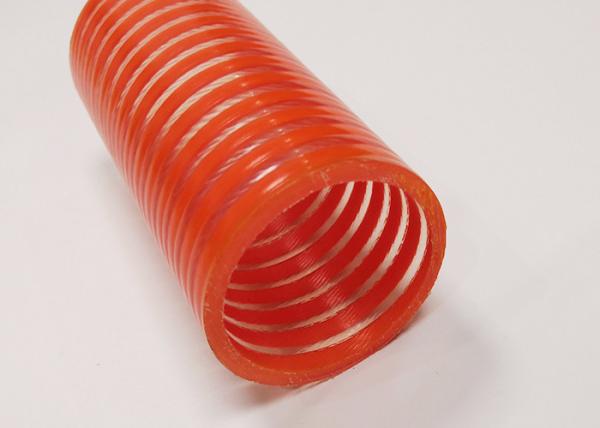

Customized PVC Flexible Helix Reinforced Suction And Discharge Hose

Heavy Duty PVC Helix Spiral Suction and Delivery Hose for Oil and Pump which is also called helix suction hose, spiral reinforced suction hose, water pump suction hose, oil suction and delivery hose, debris suction hose, trash pump hose and vacuum hose etc. Which is heavy duty PVC suction hose designed for high pressure suction or transfer in general industry applications.

Parameter:
Material: 100% Pure PVC with Rigid Helix Reinforced
Size: 3/4"-12"
Working Pressure: 2-8bar
Length: 100/200/300/500m

Features:
General purpose hose, good flexibility, light weight, weather and abrasion resistant, UV resistant, smooth tube prevents materials blockage, smooth outer provides easy dragging, , clear wall provides easy inspection of materials flow, rigid helical reinforcement provides high pressure resistant, different lengths available and easily assembled with different couplings and clamps, ideal replace for bulkier and heavier ply-wrapped rubber hose.

Temperature Range: -5°C-65°C

Specification

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
3/4 19 0.984 25 0.28 8 120 50 150
1 25 1.221 31 0.35 8 120 50 150
1-1/4 32 1.496 38 0.40 7 100 50 150
1-1/2 38 1.811 46 0.65 7 100 50 150
2 51 2.362 60 1.05 6 90 50 150
2-1/2 64 2.913 74 1.30 6 90 30 90
3 76 3.386 86 1.70 5 75 30 90
4 102 4.488 114 3.00 5 75 30 90
5 127 5.512 140 3.60 4 60 30 90
6 153 6.614 168 5.50 4 60 20 60
8 203 8.622 219 7.00 3 45 10 30
10 254 10.787 274 12.00 2 30 10 30
12 305 12.953 329 18.00 2 30 10 30
