8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
8.5mm Yellow Braided Flexible PVC Spray Hose Pipe Plastic High Pressure
Specifications
Brand Name :
ET
Model Number :
PVC Spray Hose
Certification :
ISO Certification
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
Size :
1/4"-1''
Type :
Reinforced Hose
Application :
air, water, light chemical solution agriculture
Used For :
Agriculture And Car Wash
Connector :
As Customers Requirement
Description

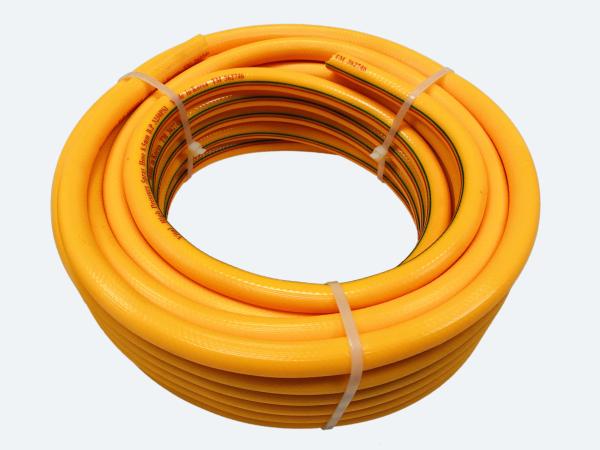

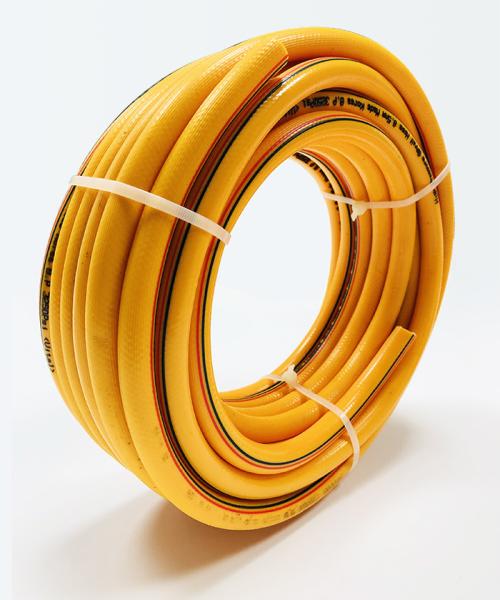

8.5mm Yellow Plastic High Pressure Braided Flexible PVC Spray Hose Pipe

Features:
Good flexibility and durability
Thermal and chemical resistance
Smooth interior for efficient flow of water
High pressure spray hose, With Korea Technology, Excellent durability under high pressure
Good flexibility and durability against climate, abrasion, chemical agent with brass Connector both end male & female.

size 6.5mm-25mm
color yellow, orange, red etc.
weight 0.096-0.563kg/m
standard passed the ROHS, PAHS test.
features brightness, Abrasion, weathering, oil, acid and alkali.
application used in high pressure industrial, compressors,

Characteristics:
Korea technology high pressure pipe, the use of highly ductile materials, exceptionally strong adhesive, the middle layer of polyester braid line, it can withstand high pressure, flexibility, light weight, resistance to bending, the surface brightness, Abrasion, weathering, oil, acid and alkali.

Being made of tough PVC materials and high tensile polyester reinforcement.
Good flexibility and adaptability against climate.
Standard length: 100m/roll

Temperature: -5℃ ~65℃

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6.5 0.452 11.5 0.096 30 450 100 300
6.5 0.493 12.5 0.121 50 750 100 300
5/16 8.5 0.531 13.5 0.117 30 450 100 300
8.5 0.571 14.5 0.146 50 750 100 300
3/8 10 0.629 16 0.166 30 450 100 300
10 0.700 17 0.200 50 750 100 300
1/2 13 0.787 20 0.250 25 375 100 300
13 0.827 21 0.290 50 750 100 300
5/8 16 0.944 24 0.340 20 300 100 300
16 0.985 25 0.391 40 600 100 300
3/4 19 1.102 28 0.450 20 300 100 300
19 1.142 29 0.509 30 450 100 300
1 25 1.339 34 0.563 20 300 100 300
