Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose
Specifications
Brand Name :
ET
Model Number :
pvc steel wire hose
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
＄0.5-＄5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000ton/month
Delivery Time :
15-30work days
Packaging Details :
carton
Length :
customized
Material :
High Grade PVC
Color :
Clear
Thickness :
2.5mm-11mm
Standard :
CE
Feature :
non toxic, flexible
Description

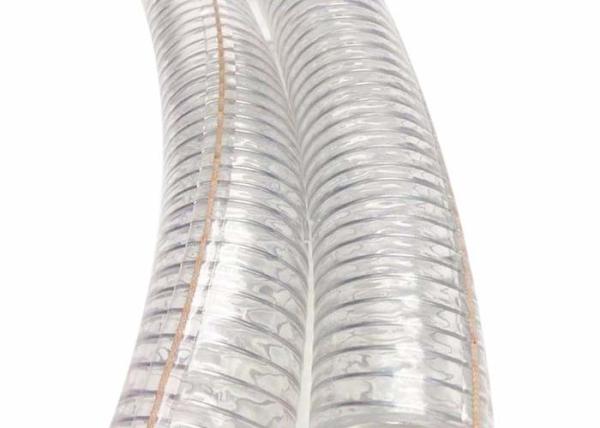

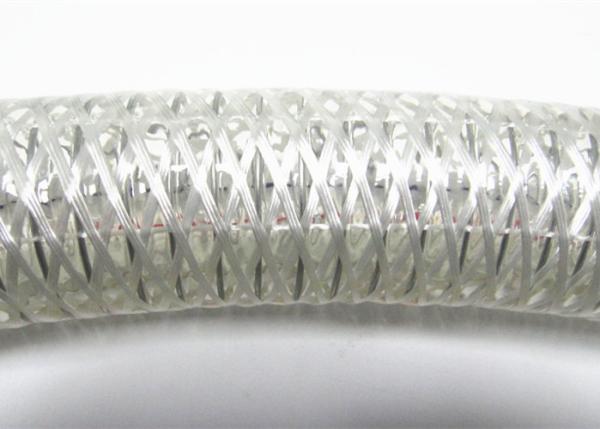

Reinforced Food Grade Spring Hose, Spiral Static Dissipative PVC Steel Wire Hose

Temperature range: -5°C - +65°C

Characteristic: The hose is light and transparent, with small bending radius, good adaptability to adverse weather conditions and low pressure. It is an ideal choice for industrial, agricultural and civil drawing transportation of water, powder and oil.

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
1/4 6 11 8 120 24 360 115 100
5/16 8 14 8 120 24 360 150 100
3/8 10 16 8 120 24 360 200 100
1/2 12 18 8 120 24 360 220 100
5/8 15 22 6 90 18 270 300 50
3/4 19 26 6 90 18 270 360 50
1 25 33 5 75 16 240 540 50
1-1/4 32 40 5 75 16 240 700 50
1-1/2 38 48 5 75 15 225 1000 50
2 50 62 5 75 15 225 1600 50
2-1/2 64 78 4 60 12 180 2500 30
3 76 90 4 60 12 180 3000 30
3-1/2 90 106 4 60 12 180 4000 20
4 102 118 4 60 12 180 4500 20
5 127 143 3 45 9 135 6000 10
6 152 168 2 30 6 90 7000 10
8 202 224 2 30 6 90 12000 10
10 254 276 2 30 6 90 20000 10
