PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
PVC Petroleum Discharge Hose Plastic Anti Static Steel Wire Reinforced Hose
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Name :
Steel Wire Reinforced Hose
Color :
Transparent
Specification :
1/4"-10"
Transport medium :
water, air, oil
Cover :
Smooth
Working pressure :
2-10bar
Description

China supplier PVC Petroleum Discharge Hose, Plastic Anti Static Steel Wire Reinforced Hose

Inner Diameter: 6mm-250mm
Outer diameter 11mm-276mm
Length: 20m/30m/50m/100m or customized
features Chemical Resistant, Weather Resistant, oil resistant
reinforced material spiral zinc-plated steel wire
working temperature -5℃ - 65℃

Features:

Used for drawing and conveying water, oil and powder in factory, agriculture.

Suitable for high strength working environment like suction and discharge for sand

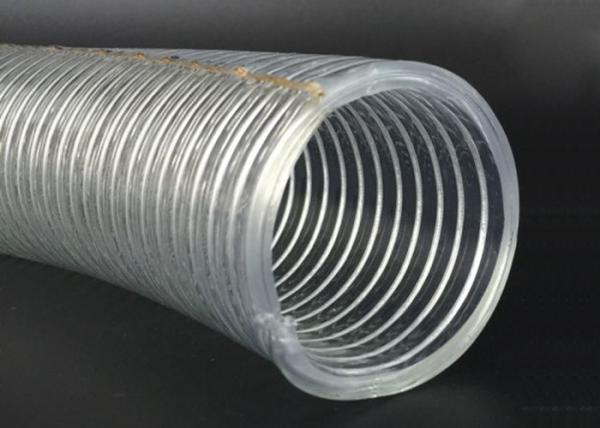

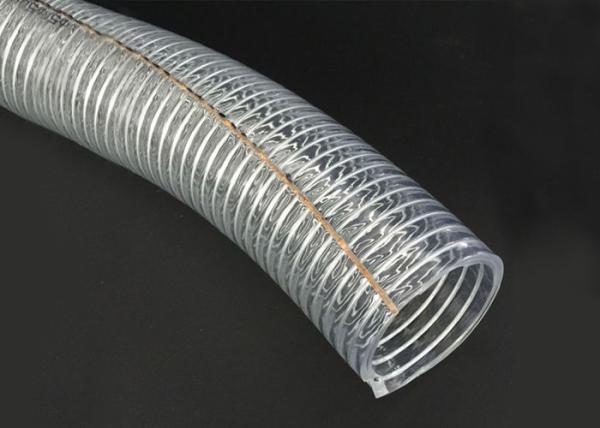

Spiral steel wire reinforced incorporated within the wall of flexible PVC tubing

Good adaptability to hard weather condition and minus pressure, small bending radius, anti-abrasion

High-temperature resistant to 100℃

Low-temperature resistant to -40℃, keep good flexibility

​Application:

​used for drawing and conveying water, oil and powder in factory, agriculture.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6 0.433 11 0.12 10 145 100 300
5/16 8 0.551 14 0.15 10 145 100 300
3/8 10 0.629 16 0.20 10 145 100 300
1/2 12 0.708 18 0.22 8 120 100 300
5/8 15 0.866 22 0.31 8 120 100 300
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
5 127 5.629 143 6.00 3 45 20 60
6 152 6.692 170 9.00 3 45 10 30
8 200 8.818 224 12.00 3 45 10 30
10 250 10.866 276 23.00 2 30 10 30
