Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose
Specifications
Brand Name :
ET
Model Number :
PVC Steel Wire Hose
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Name :
PVC Steel Wire Hose
Material :
PVC
Color :
Clear
Specification :
1/4"-10"
Transporting Medium :
Water, Oil, Liquid
MOQ :
1000m
Description

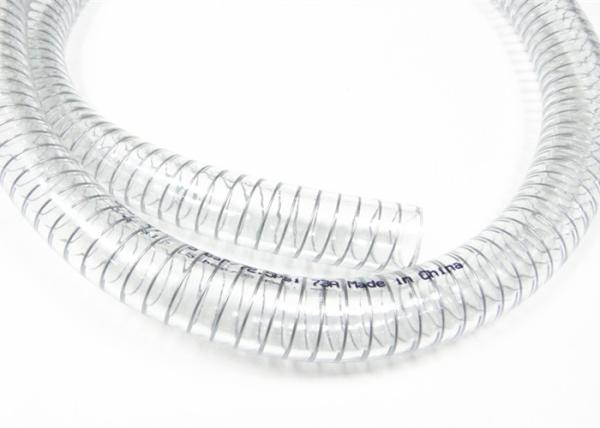

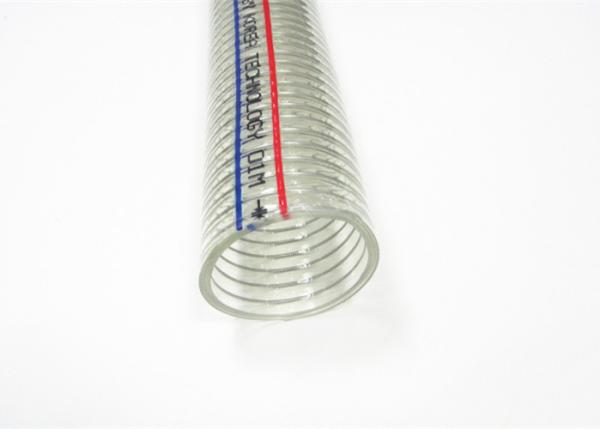

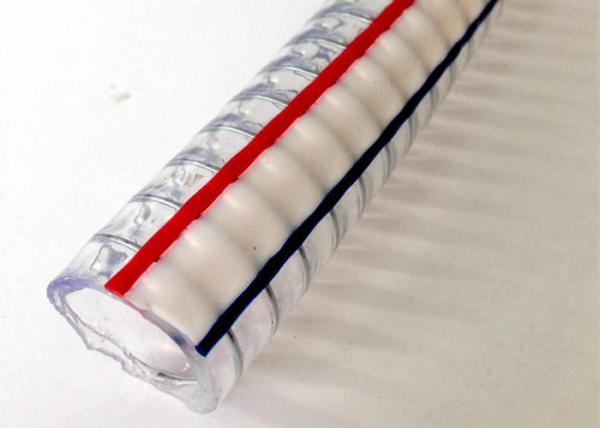

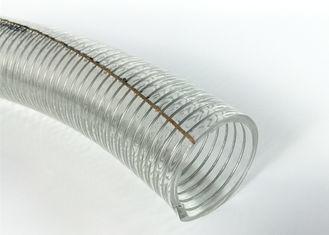

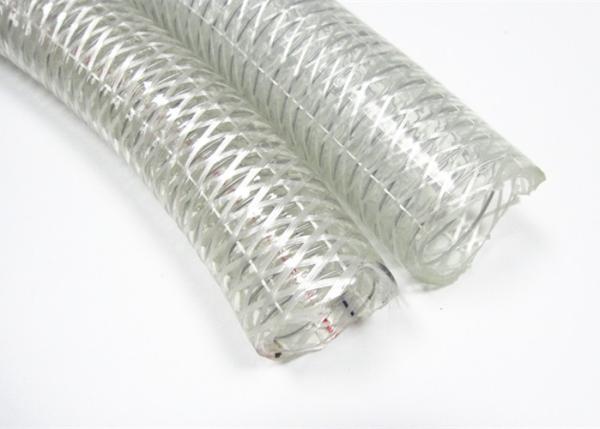

Flexible Clear PVC Spring Spiral Steel Wire Reinforced Water Fuel Suction Discharge Hose

PVC steel wire reinforced hose with steel wire embedded in the hose, which is also called PVC wire suction hose, PVC spring hose, PVC vacuum hose, etc. Mainly suitable for suction and delivery of water, slurries, granules, powder, chemical in shipyards, agricultural and industrial applications.

size 1/4''-10''
color clear, blue,yellow etc.
Length: 20m/30m/50m/100m or customized
weight 0.12 - 23kg/m
working pressure 2bar - 10bar
burst pressure 6bar - 30bar

Non toxic, silicone free

Light weight and transparent

Abrasion and weather resistant

Smooth interior to prevent material buildup

Tough, flexible, no kinking or collapsing

Working temperature: -5℃ to +65℃

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
1/4 6 11 8 120 24 360 115 100
5/16 8 14 8 120 24 360 150 100
3/8 10 16 8 120 24 360 200 100
1/2 12 18 8 120 24 360 220 100
5/8 15 22 6 90 18 270 300 50
3/4 19 26 6 90 18 270 360 50
1 25 33 5 75 16 240 540 50
1-1/4 32 40 5 75 16 240 700 50
1-1/2 38 48 5 75 15 225 1000 50
2 50 62 5 75 15 225 1600 50
2-1/2 64 78 4 60 12 180 2500 30
3 76 90 4 60 12 180 3000 30
3-1/2 90 106 4 60 12 180 4000 20
4 102 118 4 60 12 180 4500 20
5 127 143 3 45 9 135 6000 10
6 152 168 2 30 6 90 7000 10
8 202 224 2 30 6 90 12000 10
10 254 276 2 30 6 90 20000 10
