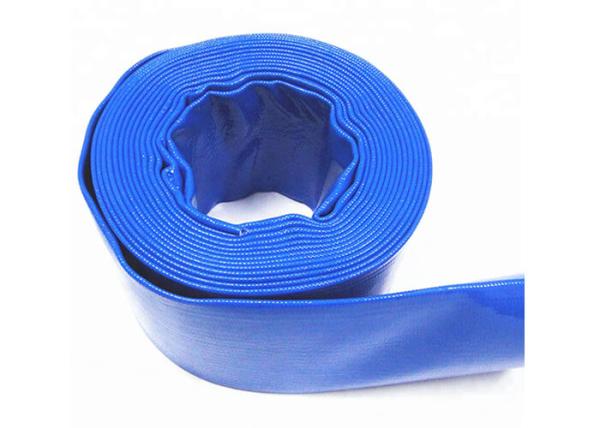

3 Inch PVC Blue Lay Flat Discharge Irrigation Hose For Agriculture Farming
size | 1-16inch |
Color | Blue / Orange / Yellow / Red / Green or customized |
Length: | 10m/30m/50m/100m Or Customized |
burst pressure | 6bar - 30bar |
features | non-toxic, long length, durable, flexibl |
usage | Agricultural Irrigation, water discharge, truck |
MOQ | 1000m |
Agricultural irrigation PVC layflat hose water pump hose
1.Choosing high strength polyester filament and high quality PVC,it is successively winded,parted the threads regularly and molded by plastic coated once.
2. High pressure resistance, working pressure :2 bar -10 bar .
3.The material is soft and elastic,colorful durable,not easy to fade.
4.Eco-friendly PVC,non-toxic,no odor,aging resistant,resistant to orrosion,anti-UV.
5.Long service life,4-6 years service life.
6.Cold resistance,do not harden and working normally in the four seasons.
Specification:
Standard Duty PVC Layflat Hose:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
inch | mm | mm | bar | psi | bar | psi | g/m | m |
3/4 | 20 | 22.4 | 4 | 60 | 16 | 240 | 100 | 100 |
1 | 25 | 27.4 | 4 | 60 | 16 | 240 | 140 | 100 |
1-1/4 | 32 | 34.4 | 4 | 60 | 16 | 240 | 160 | 100 |
1-1/2 | 38 | 40.2 | 4 | 60 | 16 | 240 | 180 | 100 |
2 | 51 | 53 | 4 | 60 | 12 | 180 | 220 | 100 |
2-1/2 | 64 | 66.2 | 4 | 60 | 12 | 180 | 300 | 100 |
3 | 76 | 78.2 | 4 | 60 | 12 | 180 | 360 | 100 |
4 | 102 | 104.5 | 4 | 60 | 12 | 180 | 550 | 100 |
5 | 127 | 129.7 | 4 | 60 | 12 | 180 | 750 | 100 |
6 | 153 | 155.7 | 3 | 45 | 9 | 135 | 900 | 100 |
8 | 203 | 207 | 3 | 45 | 9 | 135 | 1600 | 100 |
10 | 255 | 259.8 | 3 | 45 | 9 | 135 | 2600 | 100 |
12 | 305 | 309.7 | 2 | 30 | 6 | 90 | 3000 | 100 |
14 | 358 | 364 | 2 | 30 | 6 | 90 | 5000 | 50 |
16 | 408 | 414 | 2 | 30 | 6 | 90 | 6000 | 50 |
Medium Duty PVC Layflat Hose:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
inch | mm | mm | bar | psi | bar | psi | g/m | m |
3/4 | 20 | 22.7 | 7 | 105 | 21 | 315 | 110 | 100 |
1 | 25 | 27.6 | 7 | 105 | 21 | 315 | 160 | 100 |
1-1/4 | 32 | 34.4 | 7 | 105 | 21 | 315 | 190 | 100 |
1-1/2 | 38 | 40.4 | 7 | 105 | 21 | 315 | 220 | 100 |
2 | 51 | 53.7 | 6 | 90 | 18 | 270 | 300 | 100 |
2-1/2 | 64 | 67.1 | 6 | 90 | 18 | 270 | 430 | 100 |
3 | 76 | 79 | 6 | 90 | 18 | 270 | 500 | 100 |
4 | 102 | 105.8 | 6 | 90 | 18 | 270 | 800 | 100 |
5 | 127 | 131 | 6 | 90 | 18 | 270 | 1080 | 100 |
6 | 153 | 157.8 | 6 | 90 | 18 | 270 | 1600 | 100 |
8 | 203 | 208.2 | 5 | 75 | 15 | 225 | 2200 | 100 |
Heavy Duty PVC Layflat Hose:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
inch | mm | mm | bar | psi | bar | psi | g/m | m |
3/4 | 20 | 23.1 | 10 | 150 | 30 | 450 | 140 | 50 |
1 | 25 | 28.6 | 10 | 150 | 30 | 450 | 200 | 50 |
1-1/4 | 32 | 35 | 10 | 150 | 30 | 450 | 210 | 50 |
1-1/2 | 38 | 41.4 | 10 | 150 | 30 | 450 | 290 | 50 |
2 | 51 | 54.6 | 10 | 150 | 30 | 450 | 420 | 50 |
2-1/2 | 64 | 67.8 | 10 | 150 | 30 | 450 | 700 | 50 |
3 | 76 | 81.1 | 10 | 150 | 30 | 450 | 850 | 50 |
4 | 102 | 107.4 | 10 | 150 | 30 | 450 | 1200 | 50 |
6 | 153 | 159 | 8 | 120 | 24 | 360 | 2000 | 50 |
8 | 203 | 209.4 | 6 | 90 | 18 | 270 | 2800 | 50 |
