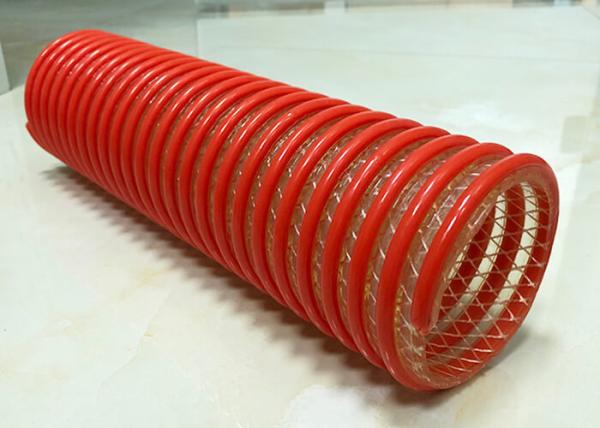

PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch
Specifications
Brand Name :
ET
Model Number :
pvc suction hose
Certification :
ISO
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.20 - $10.00 / Meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 Meter/Meters per Month
Delivery Time :
15-20 work days
Packaging Details :
Plastic film wrapping
Name :
pvc suction hose
Color :
red, blue, green, orange etc.
Size :
3/4"-16"
Features :
Smooth, flexible, lightweight
Working Temperature :
-5℃ - +65℃
Thickness :
2mm-12mm
Working Pressure :
2-8bar
MOQ :
1000m
Description

PVC Suction Hose Flexible Corrugated Water Pump Helix Spiral Vacuum 6 8 10 Inch

Construction:
Wall:High quality plasticized PVC
Reinforcement:Rigid PVC helix

Application:
Very ideally for conveying water,oil,and powder, abrasive mineral sands,gravel ,cement,chips,shavings,construction,agriculture and industrial service applications.

Feature:
Anti-abrasion,anti-corrosion,anti-aging
Super flexible,small bending radius,light weight
Smooth tube and excellent water supply and draining efficiency
High abrasion resistance and easy to transfer power

Coupling:
Camlock coupling and clamps are available separately or assembly with hose

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 19 23 6 90 18 270 230 50
1 25 29 6 90 18 270 290 50
1-1/4 32 38 6 90 18 270 400 50
1-1/2 38 46 6 90 18 270 650 50
2 50 56 5 75 15 225 700 50
2-1/2 63 71 4 60 12 180 1170 30
3 75 83 3 45 9 135 1300 30
4 100 110 3 45 9 135 2300 30
5 125 137 3 45 9 135 3300 30
6 152 166 2 30 6 90 5500 20
8 200 216 2 30 6 90 6700 10
10 254 270 2 30 6 90 10000 10
12 305 329 2 30 6 90 18000 10
14 358 382 2 30 6 90 20000 10
16 408 432 2 30 6 90 23000 10
