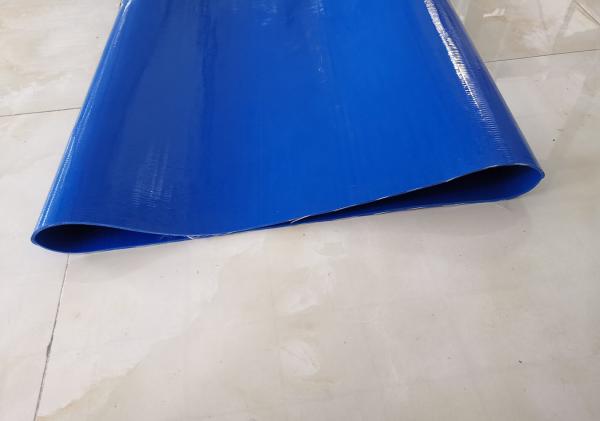

Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Blue Color PVC Layflat Hose Water Pump Hose Pipe For Agricultural Irrigation
Specifications
Brand Name :
ET
Model Number :
PVC layflat hose
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
Negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
Name :
PVC Lay Flat Hose
Color :
blue
Length :
100m,according to your request
Material :
PVC
Specification :
1''-16''
Working pressure :
2-10bar
Description

Blue Color 1mm-1.5mm PVC Lay Flat Hose For Agricultural Irrigation

product description

The color pvc layflat hose is mainly made of polyvinyl chloride material. It is an internationally certified 4 bar standard pressure hose. The pvc layflat hose has a particularly good pressure resistance although it has a wall thickness of only 1 mm to 1.5 mm. It is mainly used in agricultural irrigation or garden irrigation. We can also customize according to customer requirements.

Product core selling point

The pvc layflat hose is made of high-strength polyester filament and high-quality polyvinyl chloride, which are continuously wound, regularly separated and lined. With high pressure resistance, working pressure can reach 3 bar -10 bar. The material selected is soft and elastic, with long-lasting color and not easy to fade.

Standard Duty PVC Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 22.4 4 60 16 240 100 100
1 25 27.4 4 60 16 240 140 100
1-1/4 32 34.4 4 60 16 240 160 100
1-1/2 38 40.2 4 60 16 240 180 100
2 51 53 4 60 12 180 220 100
2-1/2 64 66.2 4 60 12 180 300 100
3 76 78.2 4 60 12 180 360 100
4 102 104.5 4 60 12 180 550 100
5 127 129.7 4 60 12 180 750 100
6 153 155.7 3 45 9 135 900 100
8 203 207 3 45 9 135 1600 100
10 255 259.8 3 45 9 135 2600 100
12 305 309.7 2 30 6 90 3000 100
14 358 364 2 30 6 90 5000 50
16 408 414 2 30 6 90 6000 50

Medium Duty PVC Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 22.7 7 105 21 315 110 100
1 25 27.6 7 105 21 315 160 100
1-1/4 32 24.4 7 105 21 315 190 100
1-1/2 38 40.4 7 105 21 315 220 100
2 51 53.7 6 90 18 270 300 100
2-1/2 64 67.1 6 90 18 270 430 100
3 76 79 6 90 18 270 500 100
4 102 105.8 6 90 18 270 800 100
5 127 131 6 90 18 270 1080 100
6 153 157.8 6 90 18 270 1600 100
8 203 208.2 5 75 15 225 2200

100

Heavy Duty PVC Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 23.1 10 150 30 450 140 50
1 25 28.6 10 150 30 450 200 50
1-1/4 32 35 10 150 30 450 210 50
1-1/2 38 41.4 10 150 30 450 290 50
2 51 54.6 10 150 30 450 420 50
2-1/2 64 67.8 10 150 30 450 700 50
3 76 81.1 10 150 30 450 850 50
4 102 107.4 10 150 30 450 1200 50
6 153 159 8 120 24 360 2000 50
8 203 209.4 6 90 18 270 2800 50

Applications

PVC irrigation hoses are mainly used for liquid discharge in various industries such as agricultural irrigation, garden irrigation, fire protection, chemical emissions, industrial wastewater, etc.

Product advantages

Pvc lay flat hose is non-toxic, odorless, aging resistant, corrosion resistant and UV resistant during use. It has excellent cold resistance and does not harden and work properly in all four seasons.
