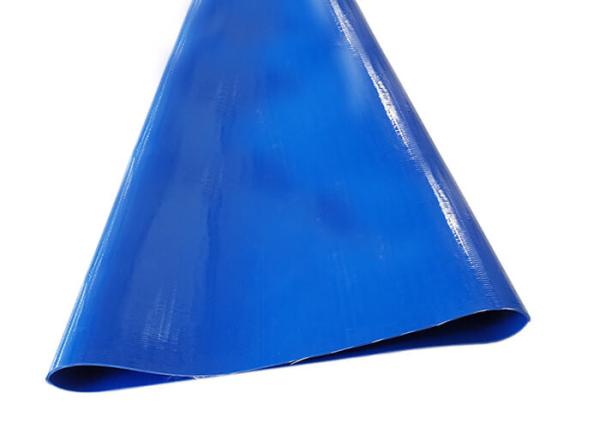

Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Agriculture Irrigation PVC Layflat Hose Fire Fighting Flexible Plastic Water Discharge
Specifications
Brand Name :
ET
Model Number :
PVC Layflat Hose
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
Negotiation
Payment Terms :
D/P, D/A, L/C, Western Union, T/T, MoneyGram
Supply Ability :
3000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
Name :
PVC Layflat Hose
Length :
50m/100m
Working Pressure :
2bar-10bar
Used For :
Agriculture And Industry
Color :
Bule, Orange, Yellow, Red, etc
Thickness :
1mm-4mm
Description

PVC Agriculture Irrigation Wholesale Layflat Fire Fighting Flexible Plastic Water Discharge Soft Lay Flat Hose

Features:

Flexible, light weight, easy storage

Tough, economical, general purpose

Smooth tube provides low friction loss

UV resistant, longer service life

Working temperature: -5℃ to +65℃


1. Use high-strength polyester filament and high-quality polyvinyl chloride, continuous winding, regular separation line, one-time molding.

2. High pressure resistance, working pressure: 2 bar -8 bar.

3. The material is soft and elastic, with long-lasting color and not easy to fade.

4. Environmentally friendly PVC, non-toxic, odorless, aging resistant, corrosion resistant, UV resistant.

5. Long service life and 4-6 years of service life.

6. Cold resistance, no hardening in four seasons, can not work properly.

Standard Duty Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 22.4 4 60 16 240 100 100
1 25 27.4 4 60 16 240 140 100
1-1/4 32 34.4 4 60 16 240 160 100
1-1/2 38 40.2 4 60 16 240 180 100
2 51 53 4 60 12 180 220 100
2-1/2 64 66.2 4 60 12 180 300 100
3 64 66.2 4 60 12 180 360 100
4 102 104.5 4 60 12 180 550 100
5 127 129.7 4 60 12 180 750 100
6 153 155.7 3 45 9 135 900 100
8 203 207 3 45 9 135 1600 100
10 255 259.8 3 45 9 135 2600 100
12 305 309.7 2 30 6 90 3000 100
14 358 364 2 30 6 90 5000 50
16 408 414 2 30 6 90 6000 50

Medium Duty Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 22.7 7 105 21 315 110 100
1 25 27.6 7 105 21 315 160 100
1-1/4 32 34.4 7 105 21 315 190 100
1-1/2 38 40.4 7 105 21 315 220 100
2 51 53.7 6 90 18 270 300 100
2-1/2 64 67.1 6 90 18 270 430 100
3 76 79 6 90 18 270 500 100
4 102 105.8 6 90 18 270 800 100
5 127 131 6 90 18 270 1080 100
6 153 157.8 6 90 18 270 1600 100
8 203 208.2 5 75 15 225 2200 100

Heavy Duty Layflat Hose:

Inner Diameter Outer Diameter Working Pressure Burst Pressure weight coil
inch mm mm bar psi bar psi g/m m
3/4 20 23.1 10 150 30 450 140 50
1 25 28.6 10 150 30 450 200 50
1-1/4 32 35 10 150 30 450 210 50
1-1/2 38 41.4 10 150 30 450 290 50
2 51 54.6 10 150 30 450 420 50
2-1/2 64 67.8 10 150 30 450 700 50
3 76 81.1 10 150 30 450 850 50
4 102 107.4 10 150 30 450 1200 50
6 153 159 8 120 24 360 2000 50
8 203 209.4 6 90 18 270 2800 50
