Monocrystalline Solar Panel

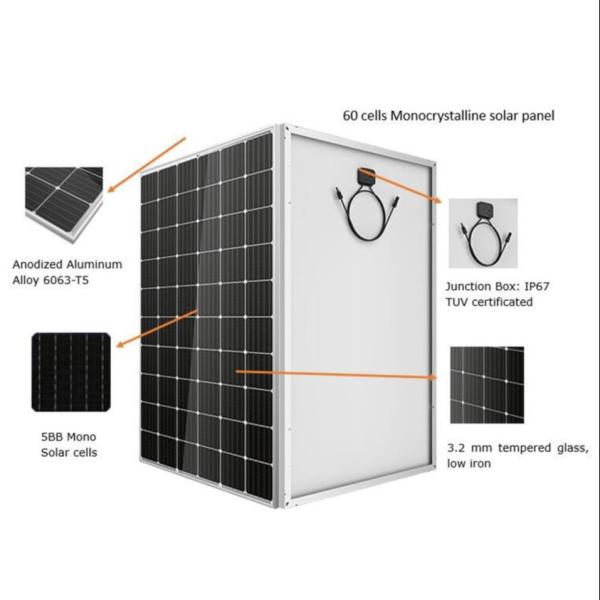

1669*1002*35mm 40.90V 320W 60PCS Mono Cell Solar Panel
| Maximum Power at STC [Pmax] | 320w |
| Open Circuit Voltage [Voc] | 40.90 |
| Short Circuit Current [Isc] | 10.15 |
| Voltage at Maximum Power Point [Vm] | 33.40 |
| Current at Maximum Power Point [Im] | 9.59 |
| Power Tolerance | 0~+5W |
| Module Efficiency | 19.18 |
| Maximum Power at NOCT [Pmax] | 239 |
| Open Circuit Voltage [Voc] | 37.80 |
| Short Circuit Current [Isc] | 8.44 |
| Voltage at Maximum Power Point [Vm] | 31.40 |
| Current at Maximum Power Point [Im] | 7.62 |
| Values at Standard Test Conditions STC | Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
| NOCT | Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |
FEATURES
1) High module conversion efficiency, through superior manufacturing technology
2) 0 to +5W positive tolerance for mainstream products
3) Certified to withstand high wind loads and snow loads
4) Anodized aluminum is mainly for improving corrosion resistance
5) Anti-reflective, Highly transparent, low iron tempered glass
6) Excellent performance under low light environment
Product details
1. Safe to use with long service life . Environmental protection solar energy.
2. Strictly quality control ensure the stability and reliability .
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
Our service
1. All your inquiry,we reply whitin 12 Hours.
2: Fast produce and delivery to our world customers.
3: Offer customer the lowest price with good quality.
Manufacturing Technique
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Solar Cells
* High Efficiency PV Cells, Anti-Pid
* Appearance Consistency
Frame&Backsheet
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
Solar Juction Box
* IP68 Waterproof, Closed
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
PV Connector
* 4mm2 Qualified cable with PV Connector
* 500N Tensile Strength
