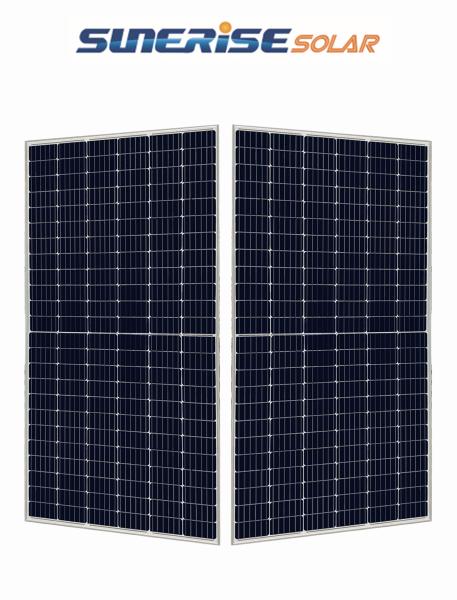

2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
Specifications
Brand Name :
SUNERISE
Model Number :
JC430-144M
Certification :
TUV , CQC , CE , ISO
Place of Origin :
Hefei,China
MOQ :
270PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1MW,I Month
Delivery Time :
5-8 work days
Packaging Details :
Packed in cartons with 30 pieces per pallet
Number Of Cells： :
144PCS
Power Range : :
430W
Size : :
2115*1052*35
Packing： :
31pcs/pallet
Weight : :
24KG
Waterproof Grade : :
IP 68
Warranty : :
25 years
Payment : :
T / T , L / C
Description

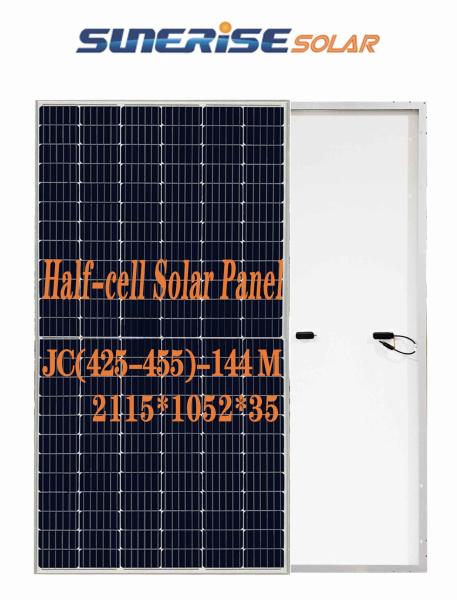

Half Cell Solar Panel

2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module

Max Power 430
Max Power Voltage 40.60
Max Power Current 10.60
Open Circuit Voltage 49.20
Short Circuit Current 11.19
Module Efficiency 19.30
Solar Cell Type MONO 83*166,144cells
Power Output Tolerance 0~+5
Maximum System Voltage 1500V DC
Max Series Fuse Rating 20A

Feature:

1. 144 series half cells
2. 0 ~ 3% positive power tolerance improves system performance
3. Industry leading module efficiency: the highest efficiency is 20.1%
4. The maximum load resistance is 5400pa
5. Verify the ability to resist PID effect
6. Progressive power guarantee of 80.7% of rated power for 25 years
7. Adopt the world-class quality standard and make globally
8. Tuvsud carried out strict salt spray and ammonia corrosion tests.

Product details:

1: High conversion efficiency due to top quality wafers and advanced cell technology,Ideal choice for large scale groung installation.

2:Through sand ,salt fog,ammonia and other weather resistance test,adapt to harsh outdoor environment.

3: Selected encapsulating material and stringent production process control ensure the product is highly PID resistan and snail trails free.

4: Enhanced frame design,moreexcellentcomponent load capacity.

5: Highly transparent self cleaning glass brings additional yield and easymaintenance.

Notes for Products :
1. Can't fold.
2 Don't have hard objects scratch the surface!
3. Do not extrude with objects.
4. USB can't enter water.

Solar cells
*Anti PID
*High Eficiency PV Cells
*Appearance Consistency
*Color soring ensure consistent appearance on each module
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
Glass
*Ant-reflectite glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life 25 years
*Translucency of normal luminosiy is increased 2%
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
Frame
*Conventional frame
*Seal-lip design glue injection
*Silver frames
*Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
Junction box
*Heat disspation
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
2115*1052*35mm 430W 144 Cells Half Cut Cells Pv Module
FAQ:
Dear friends,
Thanks for shopping from us.
We will deliver the goods within five to eight working days after you pay, and then inform you to track the delivery order number.The package will arrive in your country in 35 days.If you don't receive the goods within 80 days, we will give you a full refund or resend the goods.If you have any questions, please contact us before you raise a dispute.We will try our best to solve your problems and provide you with the best after-sales service.Your satisfaction and feedback are very important to us.
I hope you enjoy your shopping in our shop.
