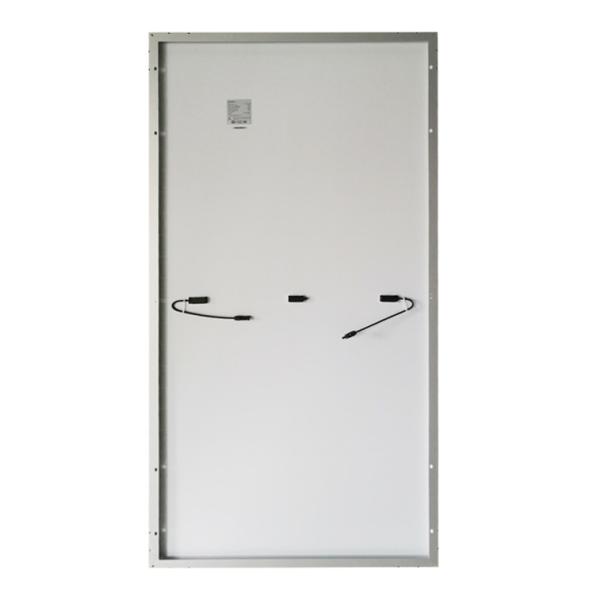

Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House
Specifications
Brand Name :
SUNERISE
Model Number :
JC450-144M
Certification :
TUV,CQC,CE,IAF,CNAS,ISO etc
Place of Origin :
Hefei,China
MOQ :
31pcs
Price :
$0.22/watt-$0.24/watt
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1MW,1Month
Delivery Time :
7 days
Packaging Details :
31pcs/pallet, packed in cartons
No.of cells :
144pcs*166*83mm
Model :
JC450-144M
Efficiency :
20.7%
Size :
2094*1038*35mm
Package :
31pcs/pallet
Pallet size :
2110*1130*1180mm
Accept :
OEM/ODM
Package weight :
744KG
Description

Nice price Pool solar panel for house Photovoltaic Solar Panels Mono Solar Panels 450w HC Solar Panel


Monocrystalline Solar Panel

Nice price Pool solar panel for house Photovoltaic Solar Panels Mono Solar Panels 450w HC Solar Panel

Features:

In recent years, Sunerise photovoltaic technology has developed rapidly and has a wide range of applications. The market has changed from only focusing on high power to a combination of high power, high power generation, low attenuation and low cost under any installation conditions, thereby further reducing The cost per kilowatt-hour, it is undoubtedly the realization of large-scale mass production and high-quality products, and it is a solution that can meet the cost, power generation and attenuation performance improvement at the same time. Half-cell technology is a technology that cuts the standard cell (156mmx156mm) into two pieces (156x78mm) by laser, and joins them after cutting. The cells of the entire assembly are then divided into two groups, each group containing 60 half-cells connected in series. To form a complete 120-cell module, the current passing through each main grid can be reduced by about 1/2, and the internal loss can be reduced by about 1/4 of the entire battery, thereby increasing the power of the module.

Maximum Power at STC [Pmax] 450W
Open Circuit Voltage [Voc] 50V
Short Circuit Current [Isc] 11.47A
Voltage at Maximum Power Point [Vm] 41.4V
Current at Maximum Power Point [Im] 10.97A
Power Tolerance 0~+5W
Module Efficiency 20.7%
Maximum Power at NOCT [Pmax] 333.6
Open Circuit Voltage [Voc] 42.7
Short Circuit Current [Isc] 8.73
Voltage at Maximum Power Point [Vm] 38.3
Current at Maximum Power Point [Im] 8.73
Values at Standard Test Conditions STC Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCT Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

Model : JC450-144M
Cell Type : MONO 166*83mm*144pcs
Power : 450W+ 0~5W
Voltage : 42.1V
Current : 10.69A
Efficiency : 20.7%
Dimension : 2094*1038*35mm
Weight : 24kg/pc
Waterproof Grade : IP68
Fireproof Grade : Class C
Package Method : 30 pcs/ pallet
Package size : 2110*1130*1180mm
Package weight : 695Kg
Quantity Of Full Load in 20’ Container : 310pcs
Quantity Of Full Load in 40’ Container : 682/726
Technique Warranty : 12 years
Generation Warranty : 25 years
OEM/ODM : Accept
MOQ : one pallet

Manufacturing Technique

Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House Waterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For HouseWaterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For HouseWaterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For HouseWaterproof IP68 Pool Mono Solar Panels Photovoltaic 450w For House

FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
