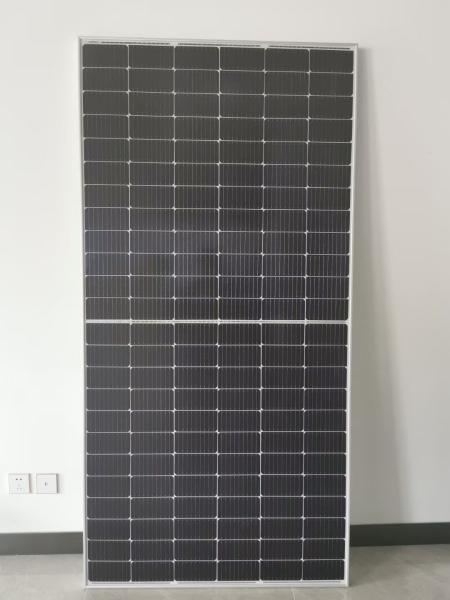

450Watt 144 M6 Cells Solar PV Module
450Watt 144 M6 Cells Solar PV Module
450Watt 144 M6 Cells Solar PV Module
450Watt 144 M6 Cells Solar PV Module
Specifications
Brand Name :
SUNERISE
Model Number :
JC450-144M
Certification :
TUV,CQC,CE,IAF,CNAS,ISO etc
Place of Origin :
Hefei,Anhui, China
MOQ :
31pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1MW,1Month
Delivery Time :
10-15 days
Packaging Details :
31pcs/pallet
Size :
2094*1038*35mm
Cell Type :
166*83mm*144pcs
Efficiency :
21%
Power :
450W+ 0~5W
Cable :
4.0mm2,900mm
Waterproof Grade :
IP68
Description

450Watt 144 M6 Cells Solar PV Module

Monocrystalline Solar Panel

450Watt 144 M6 Cells Solar PV Module

Features:

Long service life .

High efficiency solar cells .

Special aluminum frame design.

High transmission ,low iron tempered glass.

Advanced cell encapsulation

ELECTRICAL DATA(STC)
Peak Power Watts-Pmax(Wp) 430W 435W 440W 445W 450W
Power Output Tolerance-P MAX (W) 0~+5W
Maximum Power Voltage-V MPP (V) 38.2 38.5 38.9 39.2 39.6
Maximum Power Current-l MPP (A) 11.25 11.30 11.31 11.35 11.36
Open Circuit Voltage-VOC (V) 46.98 47.35 47.85 48.21 48.71
Short Circuit Current-l SC (A) 12.04 12.09 12.10 12.15 12.16
Module Efficiencyηm (%) 19.4 19.6 19.8 20.1 20.3
STC Irradiance 1000w/m2,module temperature 25℃,air mass 1.5

TEMPERATURE RATINGS
Nominal Operating Cell Temperature (NOCT) 44℃(±2℃)
Temperature Coefficient of PMAX - 0.39%/℃
Temperature Coefficient of VOC - 0.29%/℃
Temperature Coefficient of ISC 0.05%/℃

MECHANICAL DATA
Solar cells 9BB Monocrystalline 166×166mm
Cell orientation 144cells (6×24)
Module dimensions 2094×1038×35mm
Weight 26kgs
Glass 3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass
Frame Silver anodized alunnium alloy
Backsheet White
J-Box IP67 rated (3 or 6 diodes)
Cables Photovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches)
Connector MC4 or MC4 Compatible

Product details

1. Solar panels use high-performance monocrystalline solar cells, which are 21% more efficient than polycrystalline in bright weather, have a long service life, and almost no maintenance.

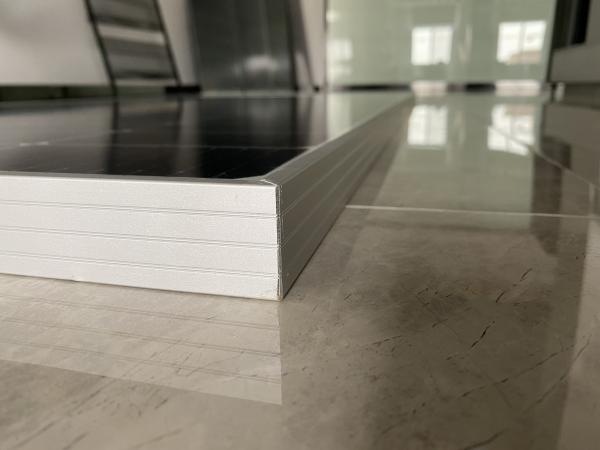

2. Anodized aluminum frame, toughened glass, and sealed junction box make the solar panel corrosion-resistant, weather-proof, and better outdoor performance.
3. The industrial standard solar panel size is 2094*1038*35mm.
4. It can be installed directly, and the pre-drilled hole is compatible with common ground installation, Z-bracket, side pole installation and inclined installation.
5. We will provide you with satisfactory solutions to any problems. Our support team is ready for you.

450Watt 144 M6 Cells Solar PV Module450Watt 144 M6 Cells Solar PV Module450Watt 144 M6 Cells Solar PV Module450Watt 144 M6 Cells Solar PV Module

Manufacturing Technique

450Watt 144 M6 Cells Solar PV Module

450Watt 144 M6 Cells Solar PV Module

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What certifications do you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where are your products applicable?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:What about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:How about yourice

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
