Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof
Specifications
Brand Name :
SUNERISE
Model Number :
JC340-72P
Certification :
TUV , CQC , CE , ISO
Place of Origin :
Hefei,China
MOQ :
31 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1MW,1Month
Delivery Time :
Within 10 work days
Packaging Details :
Packed in cartons with 31 pieces per pallet
Solar Cell :
Polycrystalline cell 156.75*156.75
Number Of Cells :
72PCS
Power Range :
340W
Size :
1956*992*35mm
Weight :
21.5KG
Waterproof Grade :
IP 68
Warranty :
25 years
Payment :
T / T , L / C
Description

Factory Directly Export Quality Silicon Material 340W Polycrystalline Solar Panel For Sale

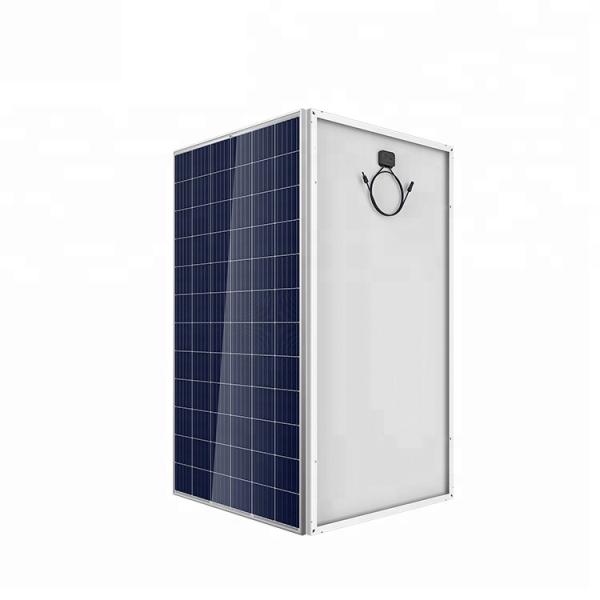

Polycrystalline Solar Panel

Blue 1956*992*35mm 72PCS 46.9V 335W Poly Solar Panel

Description:

Polycrystalline is square and blue after lamination. The conversion efficiency per unit area is lower than that of single crystal half slice. It is composed of eight auxiliary materials, including battery sheet, glass, back plate, EVA film, frame, junction box, welding belt and silicagel.

Feature:

1. High efficiency.Light weight,easy carrying,easy shipment,easy installation.

2. The products are suitable for various scenarios.For example yachts, households,RVs, street lights and solar power stations.

3. Waterproof, anti-small hail, efficient and stable, cheap, 25 years life.

Notes for Products:
1. Do not extrude with objects.
2. Can't fold.
3. USB can't enter water.

Caution:
1. Don't connect the input & output of the same panel itself or it will cause SHORT CIRCUIT!
2. It away from strong corrosive objects!
3. Don't have hard objects scratch the surface!

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Technical Specification Data

Model
JC335-72P
JC340-72P
JC345-72P
JC350-72P
JC355-72P
Rated Maximum Power at STC
335W
340W
345W
350W
355W
Open Circuit Voltage(Voc/V)
46.3
46.5
46.7
46.9
47.0
Maximum Power Voltage(Vmp/V)
37.9
38.2
38.4
38.5
38.7
Short Circuit Current(Isc/A)
9.36
9.45
9.5
9.6
9.69
Maximum Power Current(Imp/A)
8.84
8.90
9.00
9.09
9.17
Module Efficiency
17.3%
17.5%
17.8%
18.0%
18.3%
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

Detailed Images
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Solar Cells


High efficiency 5BB PV cell
Uniform color
Anti-PID
Germany standard Cell
Full test

Junction box


Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Glass


Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years

Frame


Stock-size
Silvery and black
Thickness 30/35/40/50mm
Stress test

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

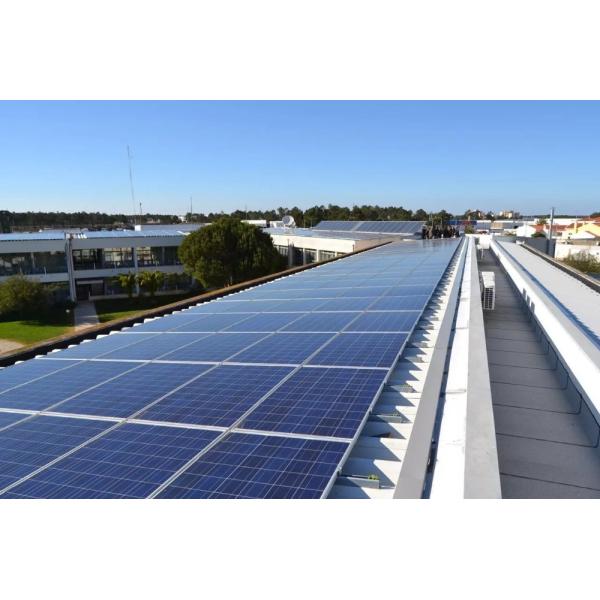

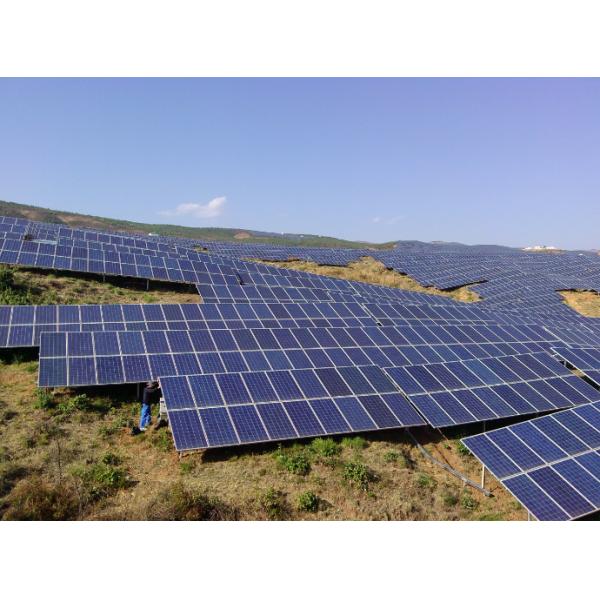

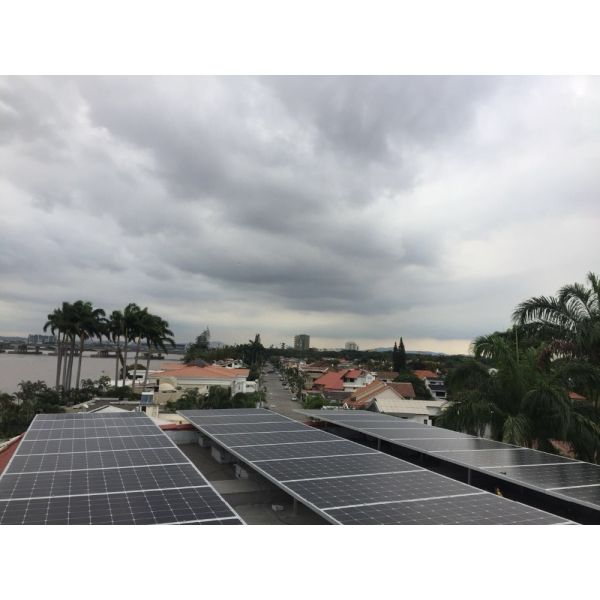

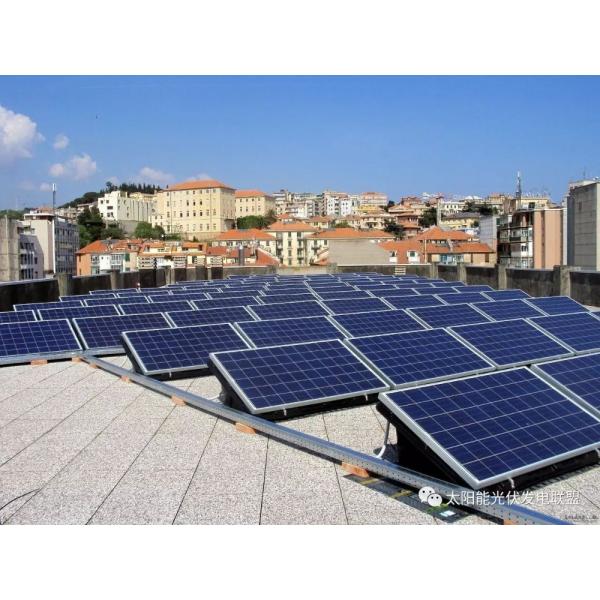

Our Projects
Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Malaysia

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Sweden

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

Mexico

Silicon Material 340W Polycrystalline Solar Panel IP68 Waterproof

New Zealand
