1500W 120V PV Power Inverter Water Resistant For School
1500W 120V PV Power Inverter Water Resistant For School
Specifications
Brand Name :
SUG
Model Number :
SGPR-1500W
Certification :
CE & ROHS & FCC & PSE
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs/month
Delivery Time :
Sample: 1-2days Bulk Order: 10-15days
Packaging Details :
Carton
Model :
SGPR-1500W
Rated Power :
1500W
Peak Power :
3000W
Input Voltage :
12/24/48V
Output Voltage :
100/110/120/220/230V
USB Port :
5V 1A
Frequency :
50HZ or 60HZ
Output Waveform :
Pure Sine Wave
Product Size :
37.3*16.5*9.2cm
N.W./Unit(kg) :
4.3kg
Description

Pure Sine Wave 1500W 12V/120V Power Inverter with USA Socket

Description of the Inverter:

SGPR 1500w is high frequency pure sine wave inverter.

Its rated power is 1500W and peak power is 3000W.

It is widely used in many areas, such as family, school, hospital, car, ships and so on.

AI intelligent chip, high quality chip designed by our engineer to make sure stable and safety.

FAQ:

1.Average life of solar panels?

Average life of solar panel is 30 yrs,

2.Is solar panels waterproof or water-resistance?

Solar panels are water resistant not water proof.

Products Specification:​

Model SGPR1500-121 SGPR1500-122 SGPR1500-241 SGPR1500-242 SGPR1500-481 SGPR1500-482
Rated Power 1500W
Surge Power 3000W(few seconds)
Input Voltage 12VDC 24VDC 48VDC
Output Voltage 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5%
USB Port 5V 0.5A
Frequency 50Hz±3 or 60Hz±3
Output Waveform Pure Sine Wave
Soft Start YES
AC Regulation THD<3%(Linear Load)
Output Efficiency 94% MAX
No Load Current 1.2A 0.6A 0.3A
DC Voltage Range 10-15.5V 20-31V 40-61V
Low Voltage Alarm 10.5±0.5V 21±0.5V 42±1V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V
Low Voltage Recovery 13±0.5V 24±0.5V 48±1V
Over Voltage Shut Down 15.5±0.5V 31±0.5V 61±1V
Over Voltage Recovery 14.8V±0.5V 29V±0.5V 59V±1V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature -10ºC - +50ºC
Net Dimension 37.3*16.5*9.2cm (L×W×H)
Meas./Ctn 49*46*31.5cm / 4pcs
N.W./Unit 4.3KG
G.W./Ctn 20KGS
Packing box
Warranty 2 Years

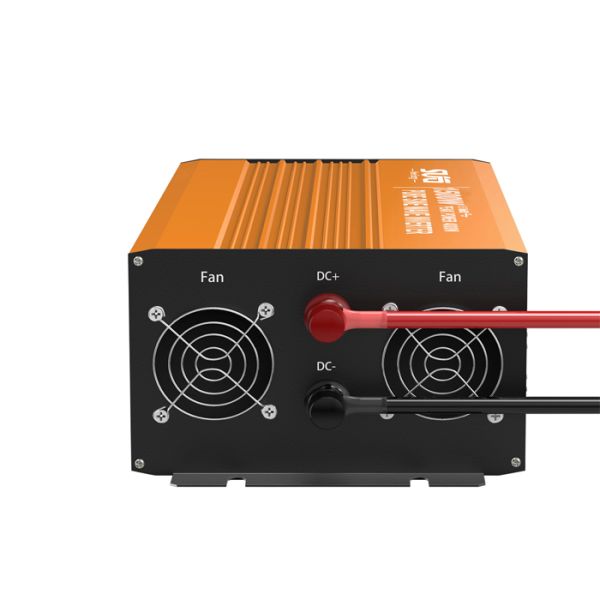

Inverter Display:

1500W 120V PV Power Inverter Water Resistant For School

1500W 120V PV Power Inverter Water Resistant For School

Factory Display:

1500W 120V PV Power Inverter Water Resistant For School

1500W 120V PV Power Inverter Water Resistant For School
