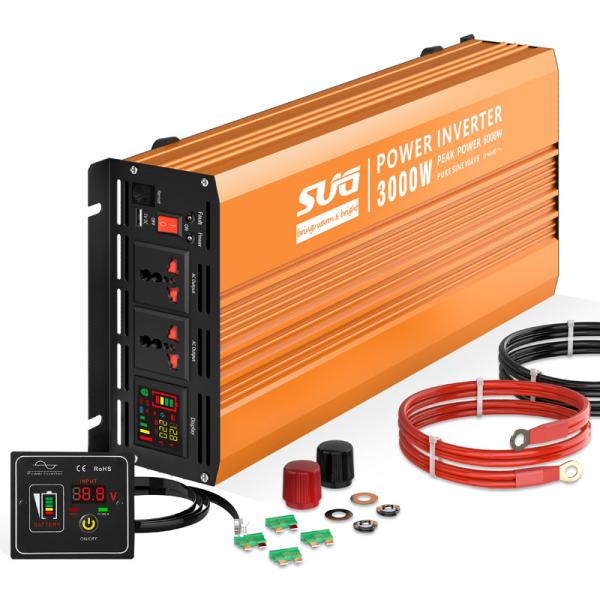

100kva Vector PV Power Inverter 3kv Checker Converter Inverter
100kva Vector PV Power Inverter 3kv Checker Converter Inverter
Specifications
Brand Name :
SUG
Model Number :
SGPE-3000W
Certification :
CE & ROHS & FCC & PSE & ISO
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, Paypal,Alipay
Supply Ability :
10000pcs/month
Delivery Time :
15-20days
Packaging Details :
Carton
Model :
SGPE-3000W
Rated Power :
3000W
Surge Power :
6000W
Input Voltage :
12V/24V/48V(provide input voltage customization)
USB Port :
5V 1A
Output Voltage :
110/220VAC(provide output voltage customization)
Output Frequency :
50HZ or 60HZ
Output Waveform :
Pure Sine Wave
Efficiency :
94% Max.
Product Size :
41*21.6*15.6cm
Meas :
56.5*30.8*24cm /1 pcs
N.W./Unit(kg) :
9kg
G.W./Ctn(kg)21KGS :
11.1KGS
Warranty :
2 Years(start when you sell to your customer)
Description

Inverters 100kva Vector Inverter 3kv Inverter Inverter Checker Converter Inverter Cosuper Inverter

This unit is ideal for air-conditioner, pump, microwave oven, refrigerator, coffeemaker, air compressor, electric motor saw, dust collector, TV set, video game, CD player, DVD player, cellular phone chargers and much more!

Model SGPE3000A-121 SGPE3000A-122 SGPE3000A-241 SGPE3000A-242 SGPE3000A-481 SGPE3000A-482
Rated Power 3000W
Surge Power 6000W(few seconds)
Input Voltage 12VDC 24VDC 48VDC
Output Voltage 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5%
USB Port 5V 1A
Frequency 50Hz±3 or 60Hz±3
Output Waveform Pure Sine Wave
Soft Start YES
AC Regulation THD＜3%(Linear Load)
Output Efficiency 94% MAX
No Load Current 0.6A 0.3A 0.1A
DC Voltage Range 10-15.5V 20-31V 40-61V
Low Voltage Alarm 10.5±0.5V 21±0.5V 42±1V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V
Low Voltage Recovery 13±0.5V 24±0.5V 48±1V
Over Voltage Shut Down 15.5±0.5V 31±0.5V 61±1V
Over Voltage Recovery 14.8V±0.5V 29V±0.5V 59V±1V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature -10℃ - +50℃
Net Dimension 41*21.6*15.6cm (L×W×H)
Meas./Ctn 56.5*30.8*24cm /1 pcs
N.W./Unit 9kg
G.W./Ctn 11.1KGS
Packing Carton
Warranty 2 Years
