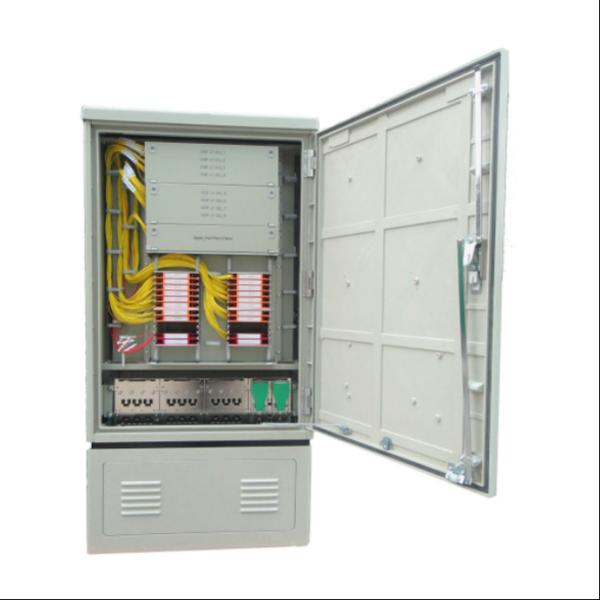

GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet
Specifications
Brand Name :
Hochiry
Model Number :
GXF-A
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Month
Delivery Time :
20-25 work days
Product Name :
Optical Distribution Cabinet
Material :
SMC
Installation :
Ground-mounted/Wall-mounted
Protection :
IP 55
Capacity :
Max 1152 Fibers
Description
GXF-A 1152 Cores Fiber Integrated Network Cabinet Fiber Optic ODF Optical Distribution Cabinet
Description
Fiber Distribution Terminal Cabinets enables telecom operator & service providers to maintain and manage the distribution of the connection in a disciplined manner for small and large scale FTTh network. These cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections. T5 Series Fiber Distribution Terminal Cabinets are mainly used for connection , distribution and splitting of communication optical cables from offices to optical distribution nodes,providing a safe,reliable and flexible fiber management system for communication networks.

Features

● Nonmetal SMC body to effectively prevent condensation

● SMC body can be pulled out from inside structure without interfere in the existing cabling, easy for maintenance in future

● Distribution large quantity of cables through PLC Splitters

● Waterproof lock,two point locking,customized external padlock

● Dust and splash-proof level reaches IP66

● Full front access or double side access(for 576 cores or above)

● Available in 12F splicing & termination tray

● Available in FC/SC/ST/duplex LC adaptor

● Modular Splitter with Pre-connectorized fiber adaptors

● Optical cable fixing & stripping device to lead-in cables

● With pedestal,facilitating implementation

Specification

Fiber Distribution Terminal GXF-A Parameter
Adaptor Type SC,FC,ST,Duplex SC,Duplex LC
Capacity 144,288,576,1152 fibers
Body Material SMC or stainless steel
Surface Treatment Powder coating white or grey color
Installation Method Floor-standing
Bending Radius(mm) > 30


Customization Event

①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information

Model Dimension HxWxD(mm) Termination /Splicing Unit Straight Pass Through PLC Splitter (Modular Type) Door & Access
GXF-A-144 1000x550x310 144F(12Fx12 Trays) 72F(12Fx6 Trays) 1:32x6 units 1xfront
GXF-A-288 1460x750x340 288F(12Fx24 Trays) 144F(12Fx12 Trays) 1:32x10 units 1xfront
GXF-A-576A 1450×760×560 576F(12Fx48 Trays) 288F(12Fx24 Trays) 1:32x20 units 1xfront+1xrear
GXF-A-576B 1450×760×560 576F(12Fx48 Trays) 288F(12Fx24 Trays) 1:32x20 units 2xfront
GXF-A-1152 1450×1400×560 1152F(12Fx96 Trays) 576F(12Fx48 Trays) 1:32x40 units 2xfront+2xrear
Please contact sales department for availability and customization requirement
