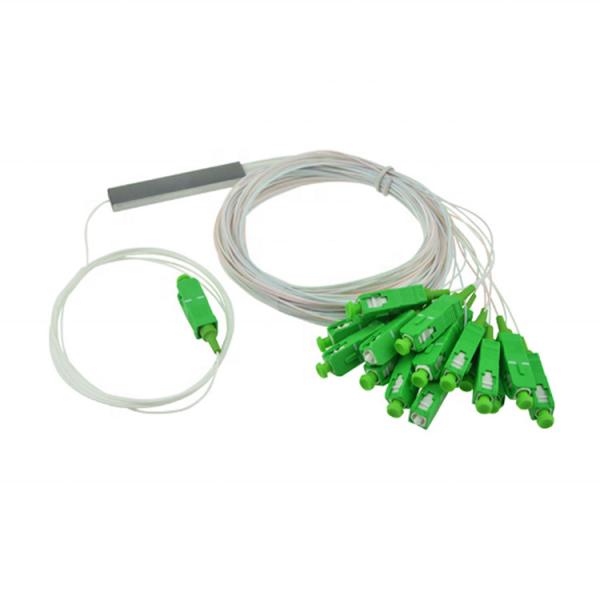

PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
Specifications
Brand Name :
Hochiry
Model Number :
PSM 1X16-PLC SC/APC
Certification :
CE ROHS FCC
Place of Origin :
CHINA
MOQ :
100PCS
Price :
6.0USD/PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS
Product name :
Optical Steel Tube Mini Type PLC Splitter
Application :
FTTX, FTTH Network
Connector :
SC/APC
Fiber Type :
G657A1,G657A2,G652D
Branchs :
1x2
Wavelength :
1260nm-1650nm
Cable :
0.9/2.0/3.0 mm
Storage temperature :
- 45~+85℃
Insertion loss :
≤0.1dB
Return loss :
≥55dB
Specs :
PSM 1X16-PLC SC/APC, G.657A, Ф900um, 1M
Fiber Mode :
Single Mode
Fiber Length :
1m or Customized
Description

PSM 1X16-PLC SC/APC G.657A GPON EPON FTTH PLC splitter 0.9mm Steel Tube fiber optic splitter

Planar Lightwave Circuit (PLC) is a more recent technology. PLC splitters offer a better solution for applications where larger split configurations are required. To achieve this, waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer very accurate and even splits with minimal loss in an efficient package.
HODAS provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 bare fiber type PLC splitters
Product Advantages
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength:From 1260nm to 1650nm
6) Wide Operating Temperature: From -40°C to 85°C
7) High Reliability and Stability
Product Application
1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems
Specification
900um steel tube fiber optic splitter technical specifications
Model name PSM 1X16-PLC SC/APC
Wavelength(nm) 1260-1650
Free Sample YES
Material PVC;ABS
Design OEM & ODM
Connectors FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
fiber optic connectors are available
Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Temperature Range (°C) -40~+75
Storage Temperature (°C) -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type
