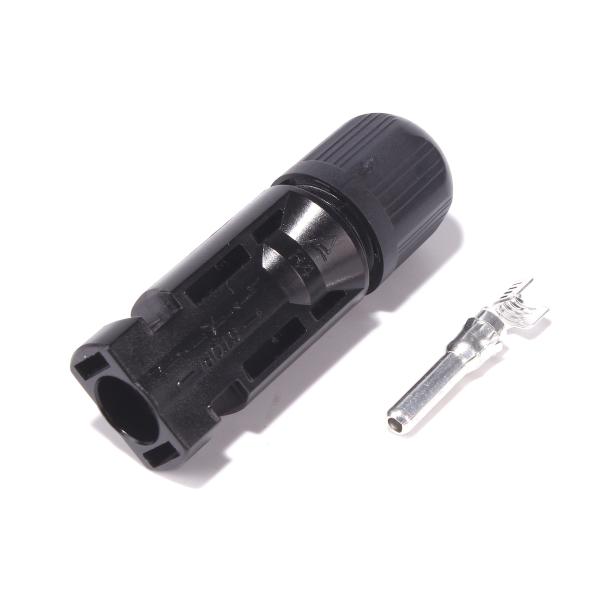

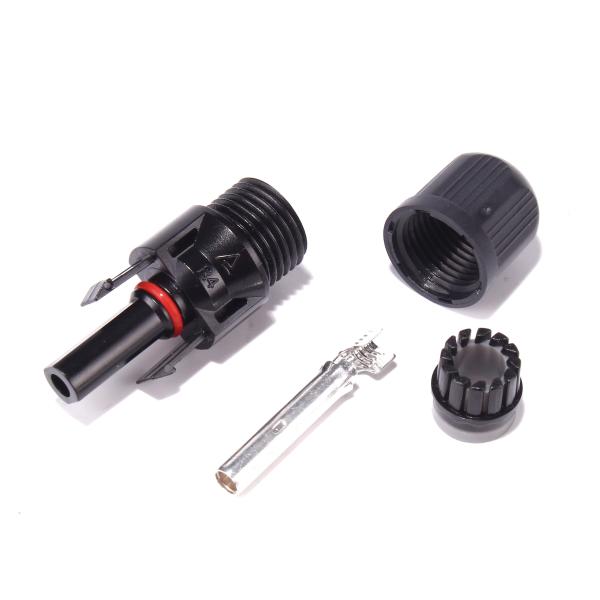

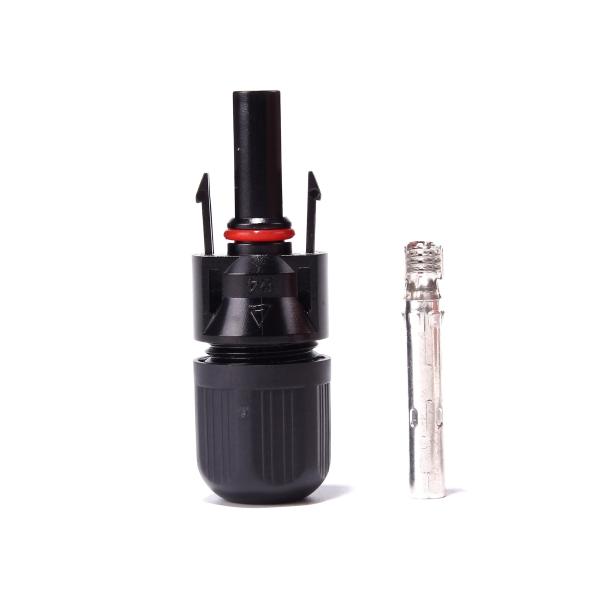

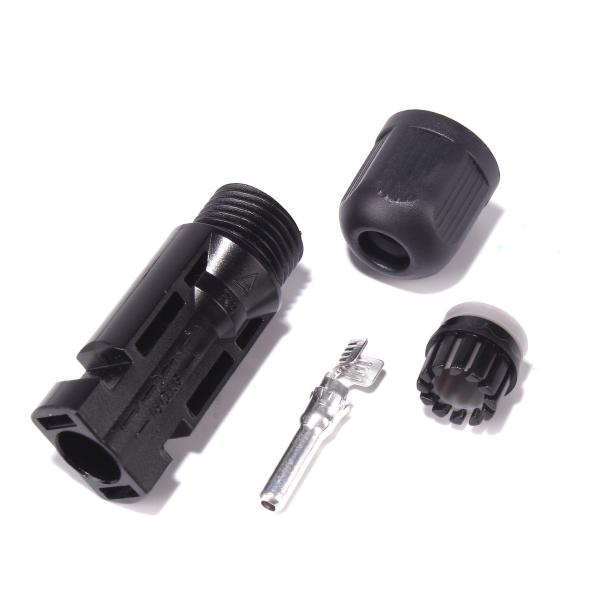

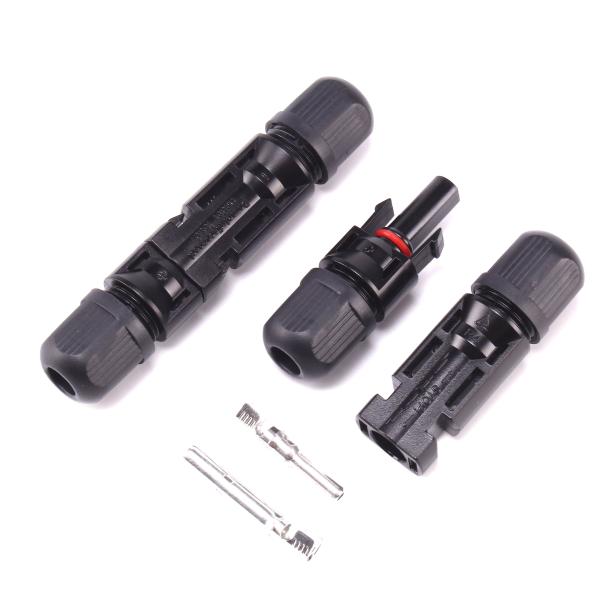

30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
30A Solar PV Connector IP67 Waterproof 1500V DC Electrical 4mm Wire
Specifications
Brand Name :
Hochiry
Model Number :
MC4 Female
Certification :
TUV
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
3-5 days
Packaging Details :
Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm
Product Name :
Solar MC4 connector
Rated Voltage :
1000V/1500V
Contact resistance :
<5mΩ
Contact material :
Copper,Tin plated
Application :
Solar Power System
Connector Type :
Male & Female Solar Connector
Test voltage :
8kV(50Hz,1 min)
Flame class :
UL94-V0
Waterproof grade :
IP67
Description
Ip67 Strong Waterproof 1500v Junction Box Pv Dc Connectors Electrical 4mm Wire Solar Panel Cable Connector
Product Description
Simple on-site processing
Mating safety provided by keyed housings
Mutiple plugging and unplugging cycles
Accomodates PV cable with deferent insulation diamaters
High Voltage and Current carrying capacity
TUV and CE approved
Specification:
Rated current
30A(2-6mm2)
Rated vollage
1000V DC 1500V DC
Size
2.5-6mm2
Test vollage
6000V(50Hz,1min)
Insulation material
PPO
Overvollage type/pollution degree
CAT I 12
Contact resistant of plug connector
1mQ
Contact material
Copper,Tin-plated
Degree of protection
IP2X/IP67
Flame class
UL94-VO
Safety class
II
Suitable cable
OD 4.5-6.5(2.5-6.0 mm2)
Insertion force/withdrawal force
Crimp connection
Connecting system
S50N/250N
Connecting system
Connecting system
Temperature range
-40°C~+90C

1.What’s the application of photovoltaic connectors?

Photovoltaic connectors are used to connect solar photovoltaic power generation systems.

2.Which models do photovoltaic connectors include?

Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).

3.How to select high quality photovoltaic connectors?

The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.

4.How long is the service life and quality assurance time of connector products?

Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
