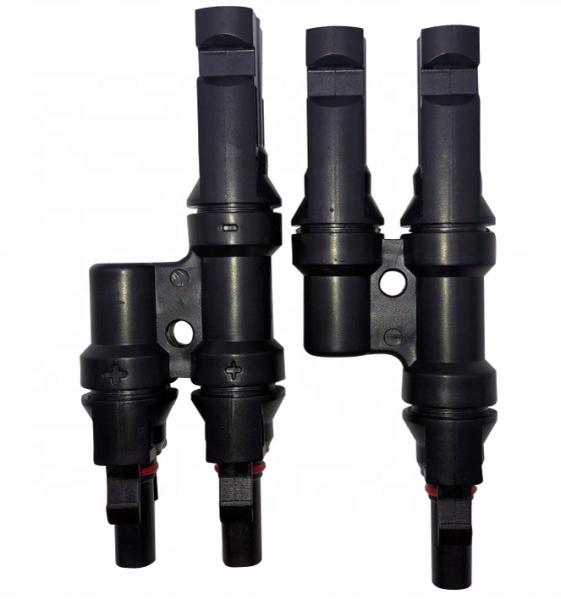

MC4T3 MC4Y Solar PV Connector / Renewable Energy Connector 25g T type 2 to 1
MC4T3 MC4Y Solar PV Connector / Renewable Energy Connector 25g T type 2 to 1
MC4T3 MC4Y Solar PV Connector / Renewable Energy Connector 25g T type 2 to 1
MC4T3 MC4Y Solar PV Connector / Renewable Energy Connector 25g T type 2 to 1
Specifications
Brand Name :
Hochiry
Model Number :
MC4 Female
Certification :
TUV
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
3-5 days
Packaging Details :
Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm
Product Name :
Solar photovoltaic connectors
Rated Voltage :
1000V/1500V
Test voltage :
8kV(50Hz,1 min)
Contact resistance :
<5mΩ
Contact material :
Copper,Tin plated
Application :
Solar Power System
Connector Type :
Male & Female Solar Connector
Flame class :
UL94-V0
Waterproof grade :
IP68
Type :
T type 2 to 1
Description
Mc4y Mc4t3 Solar Panel Renewable Energy Connector With TUV UL

MC4T3 Connector for DC Cable Description:


a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction:MC4 Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.

MC4T3 Connector for DC Cable Advantages:


a.Simple on-site processing
b.Mating safety provided bykeyed housings
c.Multiple plugging and unplugging cycles
d.Accomodates PV cable with different insulation diameters
e.High current carrying capacity
f. TUV and UL approved

MC4T3 Connector for DC Cable Technical Data:

Product Name MC4T3 Connector
Rated Current 30A(2.5~6mm2)
Rated Voltage 1000V DC
Test Voltage 6000V(50HZ, 1min)
Overvoltage category/Pollution degree CAT III/2
Contact resistence of plug connectors 1 mΩ
Conatct material Copper, Ag plated
Insulation material PPO
Degree of protection IP20/IP67
Flame class UL94-V0
Safety class II
Suitable cable 2.5-6mm2
Insertion force/Withdrawal force ≤50N/ ≥50N
Connecting system Crimp connection
Temperature range -40ºC~+125ºC
Packing unit 1000pcs
Minimum order quantity 1000pcs
Weight per Piece (excluding packing) 25g
Custom tariff number 8536690000
Country of origin China

1.What’s the application of photovoltaic connectors?

Photovoltaic connectors are used to connect solar photovoltaic power generation systems.

2.Which models do photovoltaic connectors include?

Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).

3.How to select high quality photovoltaic connectors?

The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.

4.How long is the service life and quality assurance time of connector products?

Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
