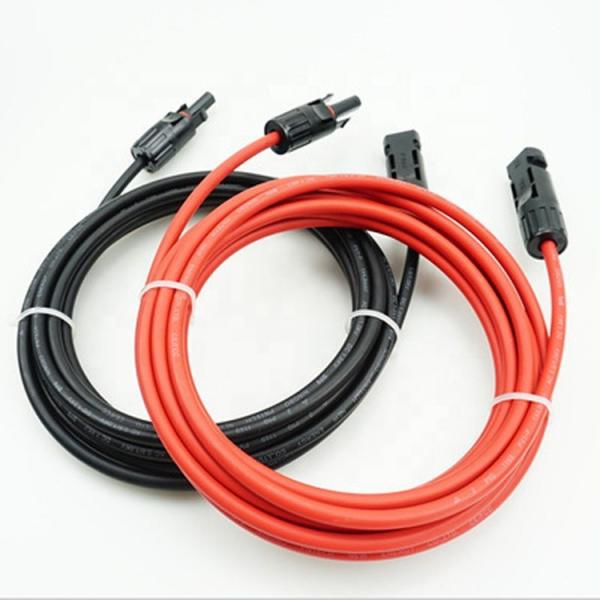

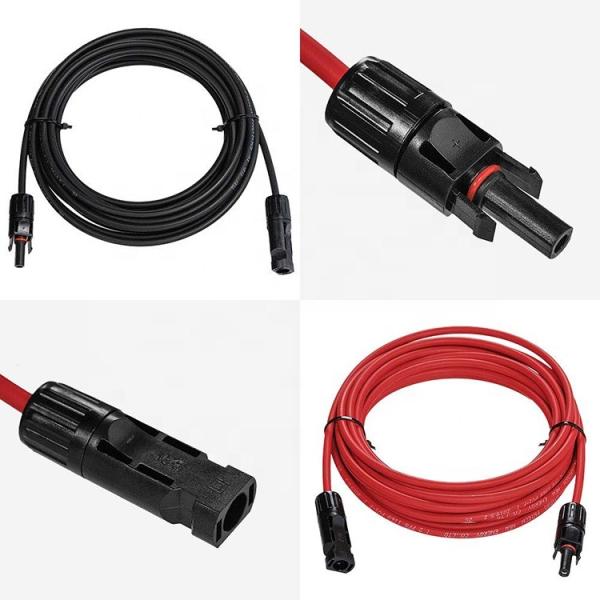

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
Specifications
Brand Name :
Hochiry
Model Number :
PV1500
Certification :
TUV&UL
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
3-5 days
Packaging Details :
1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg
Product name :
Solar Panel Extension Cable
Conductor material :
Tinned copper strands
Core :
Multi-core
Conductor :
tinned copper conductor
Standard :
IEC60502
Rated voltage :
AC 600/1000V DC 1000/1800V
Jacket :
XLPO/XLPE/PVC/PE
Flame test according to :
DIN EN 50265-2-1 UL 1571(VW-1)
Application :
Solar power system
Description
2.5mm2 4mm2 6mm2 Male Female Solar Panel Connector Solar PV Cable Solar Panel Extension Cable
Features :

1. For outdoor use and it is moisture, UV and corrosion resistant.
2. Male and Female Hard plastic connector at the end.
3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.

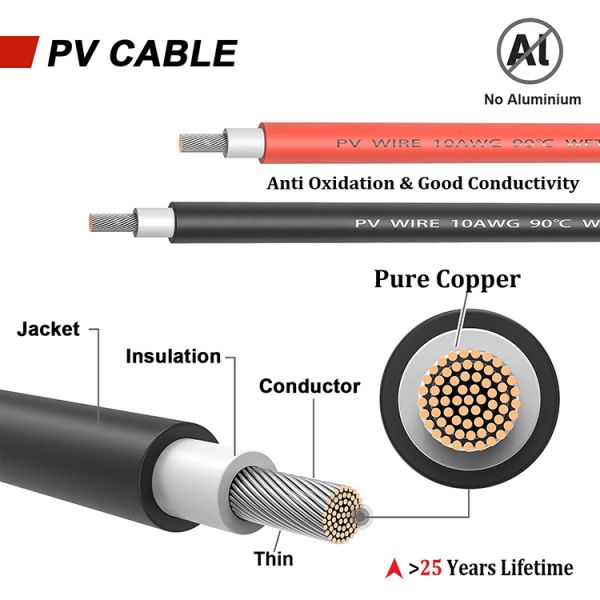

Technical Characteristics:

Product Name
Solar PV Cable Solar Panel Extension Cable
Insulation Material
PPO
Connector 1
Solar Panel Male/Female Connector
Connector 2
Solar Panel Male/Female Connector
Cross-section
2.5mm2, 4.0mm2, 6.0mm2, 10mm2
Rated Voltage
1000V/1500V DC
Rated Current
30A(2.5mm2),50A(4mm2,6mm2)
Length
1m, 1.5m, 2m, 3m, 5m, 6m, 10m, 15m, 20m, 25m, 30m, 50m, 70m (Customized)
Waterproof protection
IP68
Application
Suitable for Generator, Solar Panel system.
Package
Bulk Pack

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

Product packaging

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector
