Armored Aerial Outdoor Fiber Optic Cable Double Parallel FRP / Steel Wire GYTXW 2km
Armored Aerial Outdoor Fiber Optic Cable Double Parallel FRP / Steel Wire GYTXW 2km
Armored Aerial Outdoor Fiber Optic Cable Double Parallel FRP / Steel Wire GYTXW 2km
Armored Aerial Outdoor Fiber Optic Cable Double Parallel FRP / Steel Wire GYTXW 2km
Specifications
Brand Name :
Hochiry
Model Number :
GYTXW Fiber Cable
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
GYTXW Fiber Cable
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
Double parallel FRP or Steel Wire
Jacket :
PE
Fiber Count :
2-288cores
Type :
All-Dielectric Self-Support
Application :
Aerial
Length :
2km or customized length
Structure :
Loose tube
Description

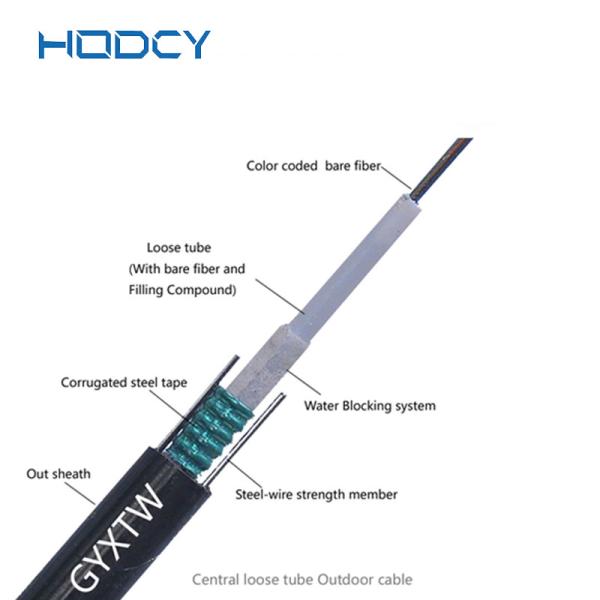

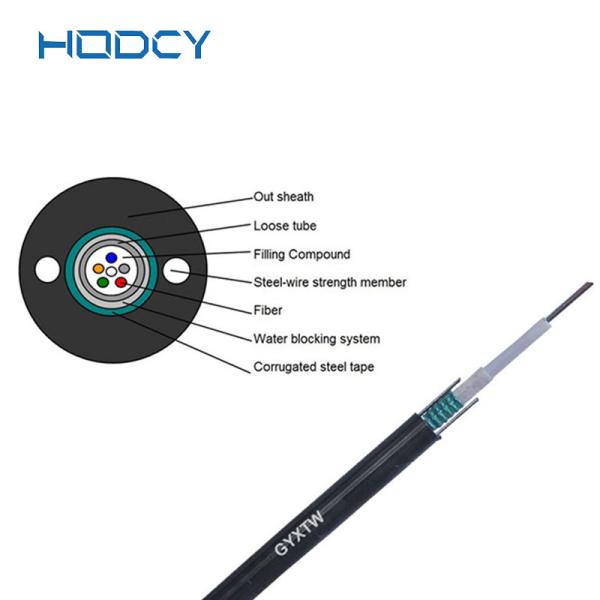

Outdoor Double Steel Wire Armored Aerial GYTXW Fiber Cable

Description:

Double parallel FRP or steel wires with good compressive properties and protect optical fibers.

Simple in structure, light in weight and universally used.

A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.

Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.

LSZH sheath is good for environmental protection.


Features:

1. GYXTW cable complies with Standard YD/T 769-2003.
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. PSP enhancing moisture-proof
6. Two parallel steel wires ensure tensile strength
7. Small diameter, light weight and friendly installation
8. Long delivery length


Technical Parameters:

Cable Type Fiber Count Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYXS/GYXTW-2~12 2~12 10 105 600/1500 300/1000 10D/20D
GYXS/GYXTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-26~36 26~36 14 190 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-38~48 38~48 15 216 1000/3000 1000/3000 10D/20D


Package and Delivery

Armored Aerial Outdoor Fiber Optic Cable Double Parallel FRP / Steel Wire GYTXW 2km
