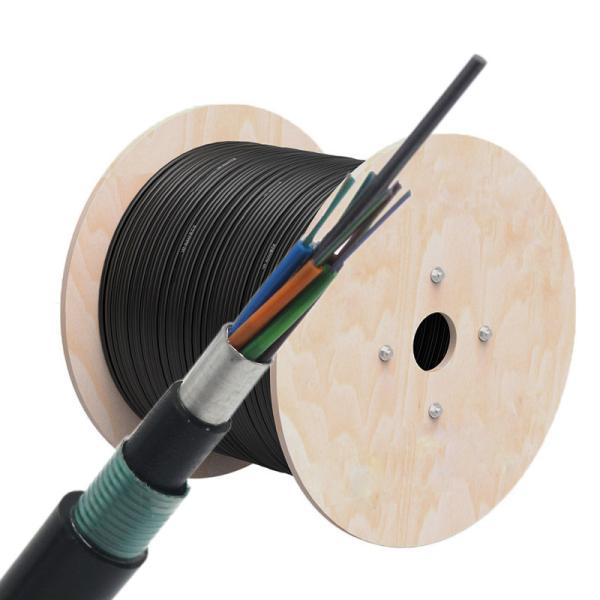

GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured
GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured
GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured
GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured
Specifications
Brand Name :
Hochiry
Model Number :
GYTS53
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
Underground Fiber Cable
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
Fiberglass reinforced Platic (FRP) or steel wire
Jacket :
PE
Fiber Count :
2-288cores
Description

GYTS53 Double Jacket Direct Buried Al Tape Steel Armored Duct Underground Fiber Optica Cable

Description:

The GYTS53 Outdoor Direct Buried Fiber Optics Cable, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with polyethylene (PE) for cable with high fibre count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP Is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Features:

Low attenuation and dispersion
Good mechanical and temperature performance
Stranded loose tube improves the tensile strength
Metal strength member provides excellent strain performance
Double-jacket structure ensures moisture resistance and crush resistance
Steel tape and aluminum tape enhances water-blocking & moisture-proof performance
Harsh environment Adopted to outdoor distribution CATV & computer networks system
Long distance and local area network communication
Used for duct and buried laying method
Specially used where good mechanical performance and rodent resistance are expected

Detais Pictures:

GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYTY53-2~6 2~6 1 5 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-8~12 8~12 2 4 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-14~18 14~18 3 3 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-20~24 20~24 4 2 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-26~30 26~30 5 1 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-32~36 32~36 6 0 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-38~48 38~48 4 1 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-50~60 50~60 5 0 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-62~72 62~72 6 0 15 215 1000/3000 1000/3000 10D/20D
GYTY53-74~84 74~84 7 1 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-86~96 86~96 8 0 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-98~108 98~108 9 1 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-110~120 110~120 10 0 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-122~132 122~132 11 1 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-134~144 134~144 12 0 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-146~216 146~216 19.5 345 1000/3000 1000/3000 10D/20D

Package and Delivery

GYTS53 Outdoor Fiber Optic Cable Double Jacket Direct Buried Al Tape Steel Armoured
