250μm GYTA53 G652D Single Mode Armored Fiber Optic Cable 2-288cores
250μm GYTA53 G652D Single Mode Armored Fiber Optic Cable 2-288cores
250μm GYTA53 G652D Single Mode Armored Fiber Optic Cable 2-288cores
250μm GYTA53 G652D Single Mode Armored Fiber Optic Cable 2-288cores
Specifications
Brand Name :
Hochiry
Model Number :
GYTA53
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
Fiber Optic Cable Outdoor
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
Fiberglass reinforced Platic (FRP) or steel wire
Jacket :
PE
Fiber Count :
2-288cores
Description

Underground G652D Single Mode Armoured Optical Fiber Cable GYTA53 Fiber Optic Cable Outdoor

Description:

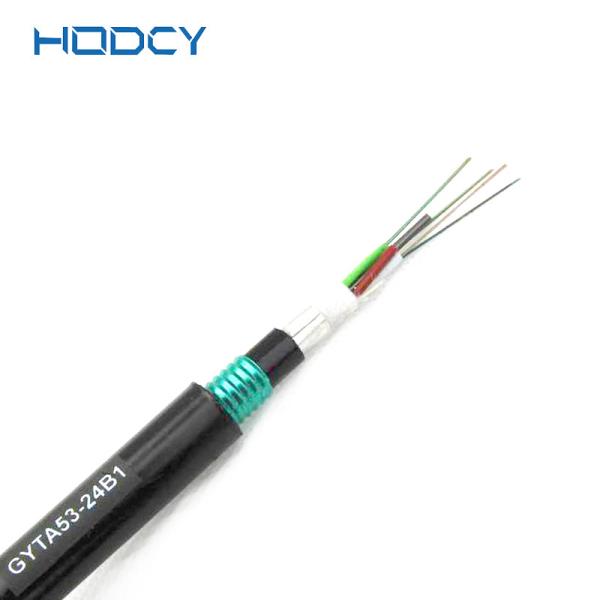

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1..
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
Aerial Duct laying methods
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYTA53-2~6 2~6 1 5 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-8~12 8~12 2 4 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-14~18 14~18 3 3 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-20~24 20~24 4 2 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-26~30 26~30 5 1 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-32~36 32~36 6 0 14.5 209 1000/3000 1000/3000 10D/20D
GYTA53-38~48 38~48 4 1 15.4 234 1000/3000 1000/3000 10D/20D
GYTA53-50~60 50~60 5 0 15.4 234 1000/3000 1000/3000 10D/20D
GYTA53-62~72 62~72 6 0 15.9 244 1000/3000 1000/3000 10D/20D
GYTA53-74~84 74~84 7 1 18 297 1000/3000 1000/3000 10D/20D
GYTA53-86~96 86~96 8 0 18 297 1000/3000 1000/3000 10D/20D
GYTA53-98~108 98~108 9 1 19.4 338 1000/3000 1000/3000 10D/20D
GYTA53-110~120 110~120 10 0 19.4 338 1000/3000 1000/3000 10D/20D
GYTA53-122~132 122~132 11 1 21.3 392 1000/3000 1000/3000 10D/20D
GYTA53-134~144 134~144 12 0 21.3 392 1000/3000 1000/3000 10D/20D
GYTA53-146~216 146~216 21.3 395 1000/3000 1000/3000 10D/20D
