Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
Specifications
Brand Name :
Hochiry
Model Number :
GYTS,GYTA
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
Armored Single Mode Fiber Optic Cable
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
Fiberglass reinforced Platic (FRP) or steel wire
Jacket :
PE
Fiber Count :
2-288cores
Description

Outdoor underground G652D single mode armoured optical fiber cable GYTA fiber opitc cable

Description:

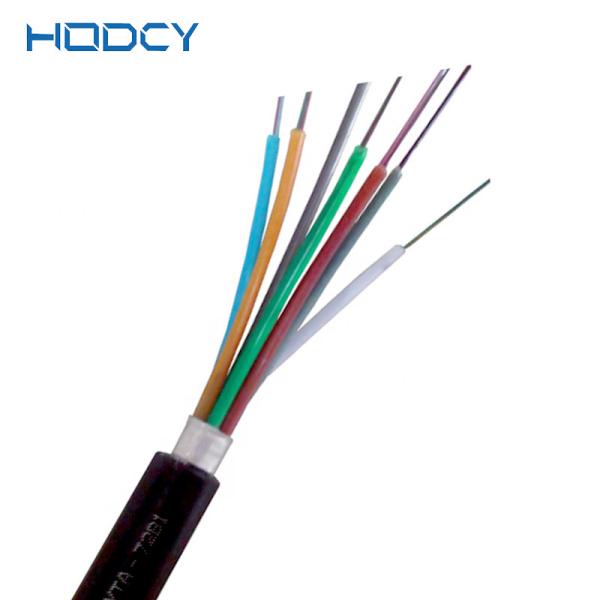

The structure of GYTA optical cable is to put 250µm optical fiber into the loose tube, which is made of high modulus material, and filled with waterproof compound. In the center of the cable core is a metallic strength member,Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Features:

  • GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
  • Good mechanical and temperature performance
  • High strength looes tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • Crush resistance and flexibility
  • Aerial Duct laying methods
  • PE sheath protects cable from ultraviolet radiation
  1. The following measures are taken to ensure the cable watertight:
  2. Steel wire used as the central strength member
  3. Loose tube filling compound
  4. 100% cable core filling
  5. APL moisture barrier

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYTA-2~6 2~6 1 4 9.7 90 600/1500 300/1000 10D/20D
GYTA-8~12 8~12 2 3 9.7 90 600/1500 300/1000 10D/20D
GYTA-14~18 14~18 3 2 9.7 90 600/1500 300/1000 10D/20D
GYTA-20~24 20~24 4 1 9.7 90 600/1500 300/1000 10D/20D
GYTA-26~30 26~30 5 0 9.7 90 600/1500 300/1000 10D/20D
GYTA-32~36 32~36 6 0 10.2 104 1000/3000 300/1000 10D/20D
GYTA-38~48 38~48 4 1 11 117 1000/3000 300/1000 10D/20D
GYTA-50~60 50~60 5 0 11 117 1000/3000 300/1000 10D/20D
GYTA-62~72 62~72 6 0 11.5 126 1000/3000 300/1000 10D/20D
GYTA-74~84 74~84 7 1 13.4 154 1000/3000 300/1000 10D/20D
GYTA-86~96 86~96 8 0 13.4 154 1000/3000 300/1000 10D/20D
GYTA-98~108 98~108 9 1 14.8 185 1000/3000 300/1000 10D/20D
GYTA-110~120 110~120 10 0 14.8 185 1000/3000 300/1000 10D/20D
GYTA-122~132 122~132 11 1 16.9 228 1000/3000 300/1000 10D/20D
GYTA-134~144 134~144 12 0 16.9 228 1000/3000 300/1000 10D/20D
GYTA-146~216 146~216 16.9 233 1000/3000 300/1000 10D/20D

Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µmOutdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µmOutdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm

Package and Delivery

Outdoor Underground Armoured Optical Fiber Cable G652D Single Mode GYTA 250µm
