Underground Outdoor Fiber Optic Cable Direct Burial GYTY53 PE Jacket
Underground Outdoor Fiber Optic Cable Direct Burial GYTY53 PE Jacket
Underground Outdoor Fiber Optic Cable Direct Burial GYTY53 PE Jacket
Underground Outdoor Fiber Optic Cable Direct Burial GYTY53 PE Jacket
Specifications
Brand Name :
Hochiry
Model Number :
GYTY53
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
GYTY53 Cable Fiber Optic
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
Fiberglass reinforced Platic (FRP) or steel wire
Jacket :
PE
Fiber Count :
2-288cores
Description

Underground Burial G652D Single Mode Armoured Optical Fiber Cable GYTY53 Cable Fiber Optic

Description

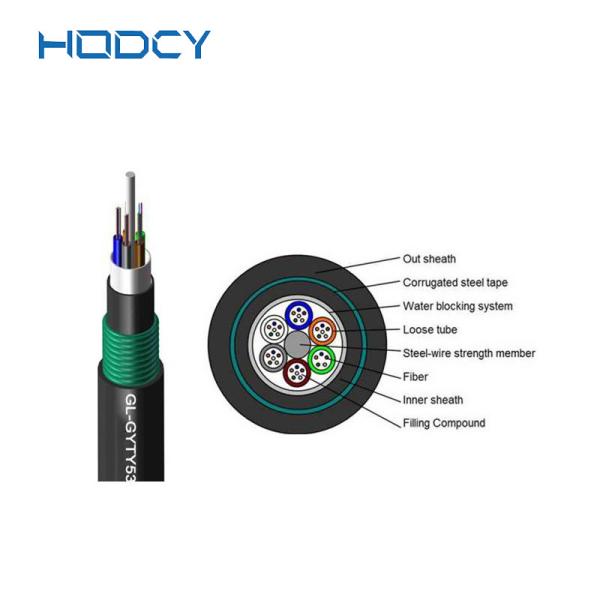

The GYTY53 Outdoor Direct Buried Fiber Optics Cable, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with polyethylene (PE) for cable with high fibre count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP Is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Features

GYTY53 Cable Fiber Optic complies with Standard YD/T 901-2001as well as IEC 60794-1..
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
Aerial Duct laying methods
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof

Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYTY53-2~6 2~6 1 5 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-8~12 8~12 2 4 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-14~18 14~18 3 3 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-20~24 20~24 4 2 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-26~30 26~30 5 1 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-32~36 32~36 6 0 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-38~48 38~48 4 1 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-50~60 50~60 5 0 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-62~72 62~72 6 0 15 215 1000/3000 1000/3000 10D/20D
GYTY53-74~84 74~84 7 1 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-86~96 86~96 8 0 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-98~108 98~108 9 1 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-110~120 110~120 10 0 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-122~132 122~132 11 1 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-134~144 134~144 12 0 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-146~216 146~216 19.5 345 1000/3000 1000/3000 10D/20D

Package and Delivery

Underground Outdoor Fiber Optic Cable Direct Burial GYTY53 PE Jacket
