Single Mode Optical GYTA Outdoor 2-288 Core Armored Fiber Optic Cable For Communication Cable

Description:

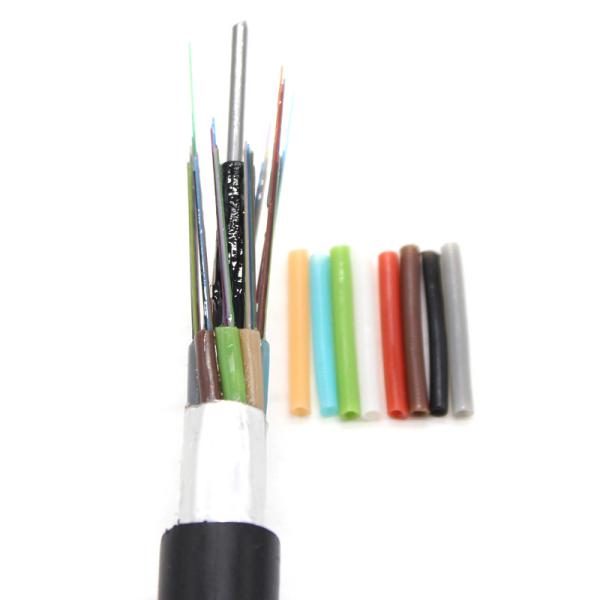

GYTA single-armored cables feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It‘s suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

Features:

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling


Application:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.


Technical Parameters:
