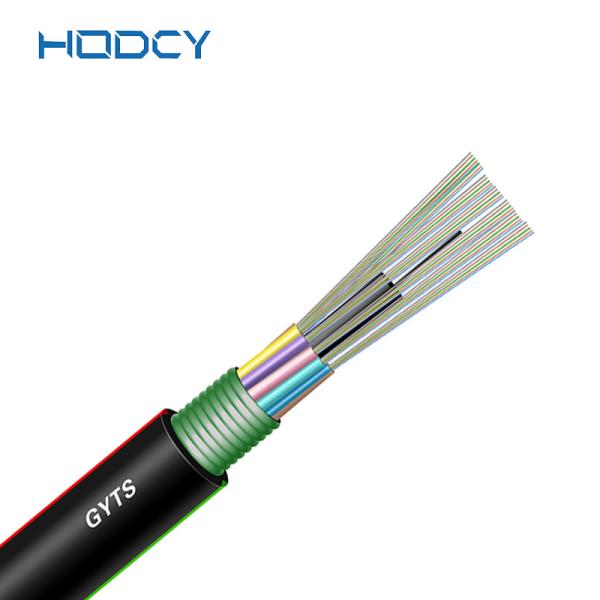

Hochiry Custom Outdoor Fiber Optic Cable G652D GYTS Multi Loose Tube Stranding

Description:
The cable structure is a single or multi-mode fiber into the loose sleeve, cable core center is a metal reinforced piece, loose sleeve around its twisting and synthesis of compact and round cable core, cable core gap filled with water to prevent the outer extrusion steel - polyethylene bond sheath cable.

Features:
Item Name:Fiber optical cable GYTS
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 30 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.
Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath

Application:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.

Technical Parameters:
