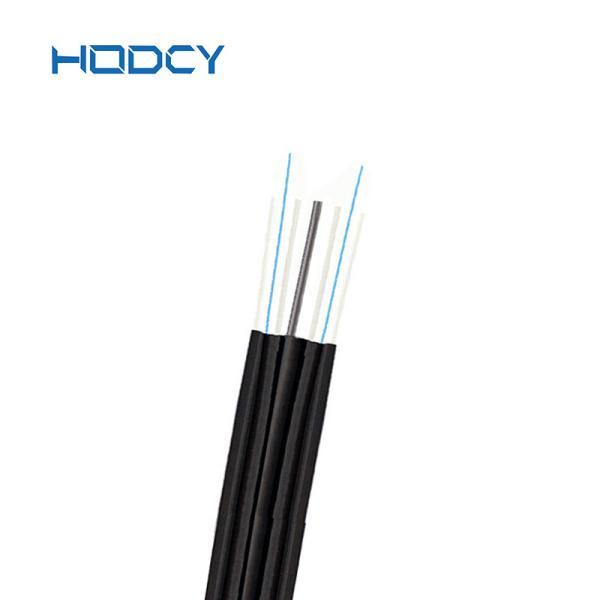

Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
Specifications
Brand Name :
Hochiry
Model Number :
GJYXFCH-1B6-SM
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100 Roll
Price :
0.07USD/Meter
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-10 days
Packaging Details :

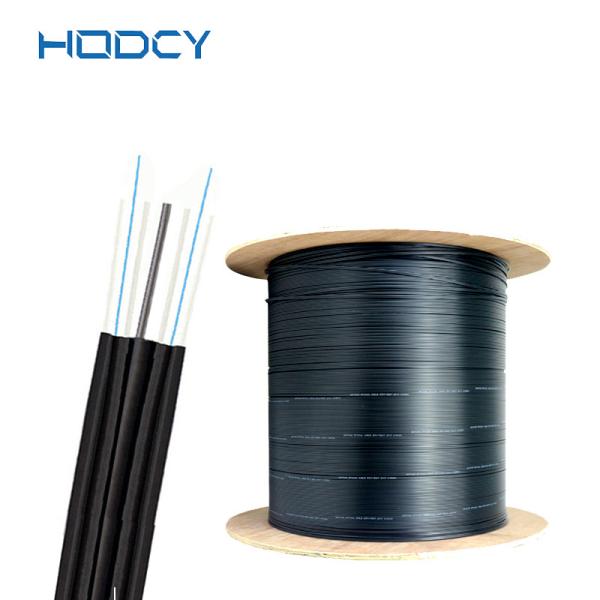

1000M per Wooden Roll
Product Name :
FTTH Optical Fiber Cable
Cable Structure :
Self-support tight buffer
Fiber type :
G652D , G657A , G657A2
Fiber Amount :
1-2 fiber
Installation tensile :
1200N
Strength member :
FRP/Steel wire
Jacket :
PVC LSZH PE
Description

2 Fibers Singldemode Aerial Ftth Fiber Optic Cable FRP KFRP Steel Strength Member Drop Fiber Cable

Description

  • The optical fiber unit is positioned in the center.
  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.

Features

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

Application

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Cable mechanical and environment characteristics

Cable code Fiber Cable diameter Cable Tensilse Crush Bedning
Count mm weight Strength Resistance Radius
Kg/km Long/Short term Long/Short term Dynamic/Static
N N mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7


Single Mode Aerial FTTH Drop Fiber Optic Cable FRP KFRP Steel Strength Member
