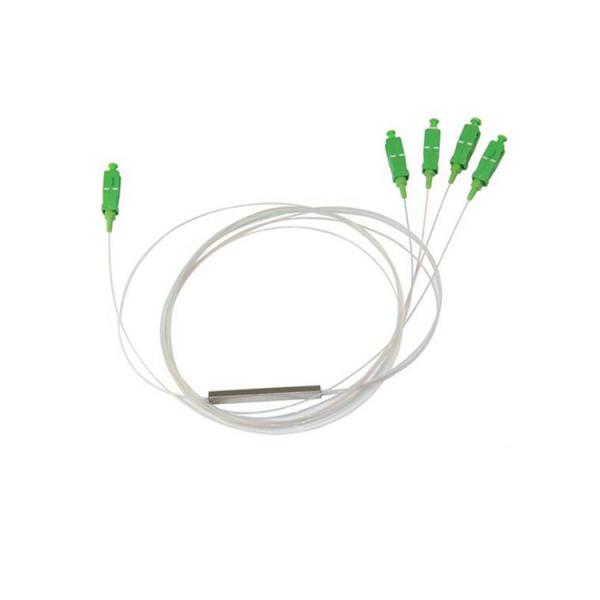

G.657A GPON EPON FTTH PLC Splitter / 900um Steel Tube PLC Fiber Optic Splitter
G.657A GPON EPON FTTH PLC Splitter / 900um Steel Tube PLC Fiber Optic Splitter
G.657A GPON EPON FTTH PLC Splitter / 900um Steel Tube PLC Fiber Optic Splitter
G.657A GPON EPON FTTH PLC Splitter / 900um Steel Tube PLC Fiber Optic Splitter
Specifications
Brand Name :
Hochiry
Model Number :
PSM 1X4-PLC SC/APC
Certification :
CE ROHS FCC
Place of Origin :
CHINA
MOQ :
100PCS
Price :
6.0USD/PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS
Product name :
PLC fiber optic splitter
Application :
FTTX, FTTH Network

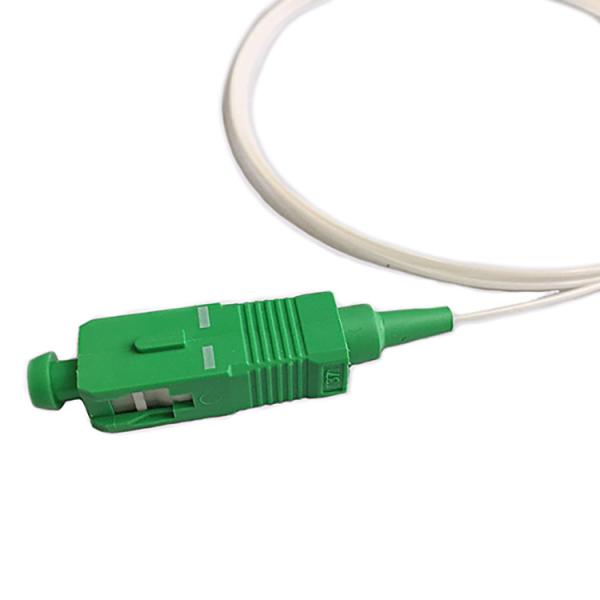

Connector :
SC/APC
Fiber Type :
G657A1,G657A2,G652D
Branchs :
1x4
Wavelength :
1260nm-1650nm
Cable :
0.9/2.0/3.0 mm
Storage temperature :
- 45~+85℃
Insertion loss :
≤0.1dB
Return loss :
≥55dB
Specs :
PSM 1X4-PLC SC/APC, G.657A, Ф900um, 1M
Fiber Mode :
Single Mode
Fiber Length :
1m or Customized
Description
PSM 1X4 PLC SC APC G.657A GPON EPON FTTH PLC Splitter 900um Steel Tube PLC Fiber Optic Splitter

PLC (Planar Lightwave Circuit) splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. HODAS PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.

The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.

HODAS provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 bare fiber type PLC splitters.

Product Feactures

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Application

1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems

Specification

900um steel tube fiber optic splitter technical specifications
Model name PSM 1X4-PLC SC/APC
Wavelength(nm) 1260-1650
Free Sample YES
Material PVC;ABS
Design OEM & ODM
Connectors FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
fiber optic connectors are available
Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Temperature Range (°C) -40~+75
Storage Temperature (°C) -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
