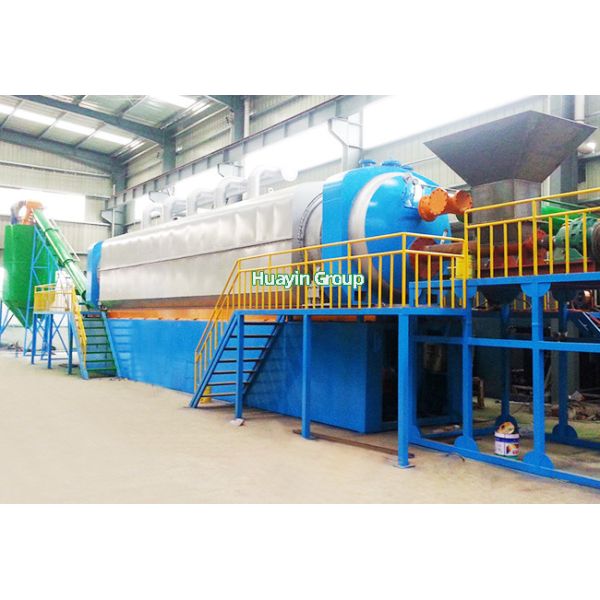

Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation
Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation
Specifications
Brand Name :
Huayin
Model Number :
HY-30T
Certification :
CE ISO
Place of Origin :
Xinxiang city ,Henan ,China
MOQ :
1
Price :
USD450000-580000/set
Payment Terms :
L/C, T/T
Supply Ability :
200sets/year
Delivery Time :
25 working days
Packaging Details :
40'FR and 40'HQ
Function :
continuous waste tyre pyrolysis plant
Material of reactor :
Stainless steel
Input raw material :
waste tires , rubber
Output product :
Fuel oil , carbon black , steel wire
Description

Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation

Fully continuous tyre pyrolysis plant manufactured by Huayin Group can convert waste plastic to energy continuously ,that means , continuous feeding , continuous producing oil and discharging carbon black without stop, and it is equipped with PLC control system. This type of pyrolysis machine can process waste in large quantities, maximum 30ton per day.

Huayin Continuous Tyre Pyrolysis Plant Basic Parameter

Model HY-05 HY-08 HY-10 HY-15 HY-30
Capacity 5 t/d 8 t/d 10 t/d 15 t/d 30-35 t/d
Working Type Batch Batch Batch Batch Continuous
Reactor size(m) D2.2*L5.5 D2.6*L6.6 D2.8*L6.6 D2.8*L8.1 D1.2*L24
Reactor material Q245R Q245R Q245R Q245R 310S stainless steel
Power 29.4KW 29.4KW 32KW 34KW 100KW
Heating Fuel Pyrolysis oil /coal/ wood/natural gas
Burners 3*300,000 kcal 3*300,000 kcal 3*300,000 kcal 4*300,000 kcal 12*30000kcal
Working pressure Normal Normal Normal Normal Normal
Landing Area 200m2 250m2 300m2 350m2 700m2
Number of Containers 1*40FR+1*40HQ 1*40FR+2*40HQ 1*40FR+2*40HQ 1*40FR+2*40HQ bulk cargo
Noise (dB) ≤60 ≤60 ≤60 ≤60 ≤60
Cooling Mode Circle Water Circle Water Circle Water Circle Water Circle Water

Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation

Applicable Raw Materials for Continuous Pyrolysis Plant

The continuous type pyrolysis machine can process various kinds of waste , including scrap tires , plastic , oil sludge.

Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation

How Does a Continuous Pyrolysis Machine Work ?

The source material is continuously fed into pyrolysis reactor, where it decomposes under heating in a primarily non-reactive environment. Lower section of the reactor is drying zone, middle and upper section is pyrolysis zone.

1. Paste and solid waste is fed by screw conveyor from the hopper , which is equipped with the level transmitter that controls safe continuous feeding, eliminating the possibility of oxygen entering the reactor

2. Liquid waste is fed from receiver tank by the pump, which is equipped with level transmitter and heating element to lower the viscosity of the sludge.

3. The pyrolysis reactor is heated to the operation temperature by the mixed fuel burner installed in furnace

4. The pressure in the reactor is controlled by temperature rise rate Diesel fuel/or produced boiler fuel is used for the plant operation.

5. Fuel is self-fed from fuel tank

6. The beginning of the decomposition process is determined by the heat exchanger temperature rise to the set value.

7. From the pyrolysis reactor the oil gas goes into condensers. Then it is cooled in the heat exchanger water in close circuit is used as a cooling agent.

8. Oil gas enters the condenser cool down to the liquid, the non-condensed gas shall be used as fuel to sustain the heating process enhancing its performance. This significantly reduces operating cost.

9. The solid residue is discharged by screw conveyor in the lower part of the reactor,where it is cooled and shifted to receiving hoppers , without oxygen access.

Output products from the pyrolysis plant

Output Products Application
Fuel Oil (40%-55%) 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc.
Carbon Black (30%-35%) 1. Make it to pellet or briquette as heating material.
Steel Wire (10%-15%) Sell to iron and steel factory directly.
Flammable Gas (8%-10%)

1. Recycled into the furnace to heat reactor instead of heating material.

2. Storage the excess gas to restart the next batch.

Fully Continuous 30Ton Capacity Huayin Plastic Pyrolysis Plant High Automation
