15T Per Day Waste Tire Pyrolysis Plant To Fuel Oil And Diesel Layout Design

Huayin Waste tire pyrolysis plant

Waste tyre pyrolysis is an advanced technology that can turn the waste into useful resources : Pyrolysis oil , carbon black , steel wire. It not only solves the problem of waste tires polluting the environment, but also brings benefits to people. Kill two birds with one stone. At present, we have helped thousands of customers install and debug the tyre pyrolysis equipment, and our equipment and services have received praise from customers all over the world.

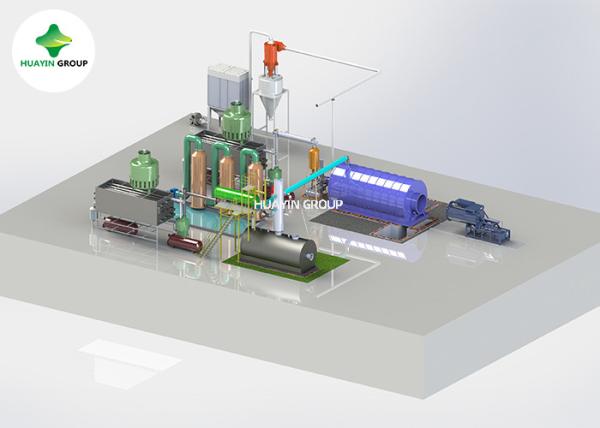

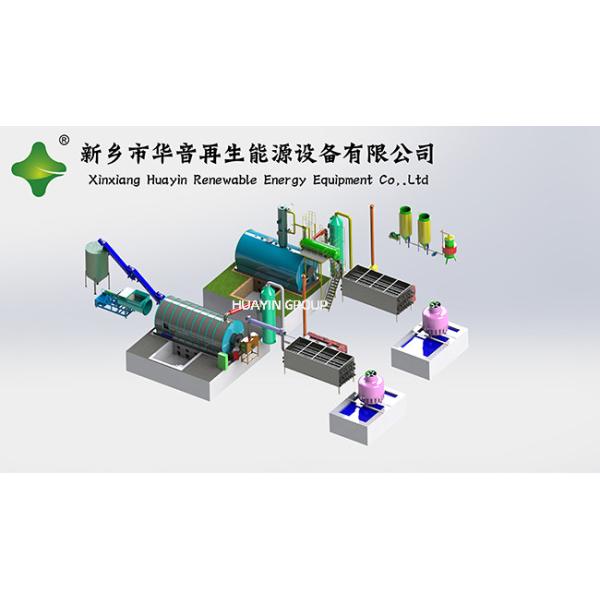

Layout design of waste tire rubber to fuel oil plant

The whole pyrolysis plant line is mainly composed of 6 parts :

• Pyrolysis reactor : the main body of the complete line, the internal reactor is rotating when production,and the temperature inside is over 500℃. Because of the excellent insulation layer , the heating efficiency is high.
• Condensing system: The oil gas will be turned to liquid oil through the condenser . As the large cooling area and distance , its cooling effect is very good .
• Feeding system: Our patent product .With the auto feeder machine , it just takes 2 hours to feed 12 ton raw materials. Saving labour and time.
• Heating system: It can use pyrolysis oil and combustible gas produced from production. So the system can run with its own fuel supplies, saving operating cost. Besides , it also can use coal , wood ,gas as heating fuel.
• Dedusting system: Purifies the smoke to ensure clean air emission. We provide different types of de-dusting device to meet different requirement of customers.
• Discharging system: Carbon black is discharged out in a sealed condition to avoid ash flying. And the water jacket outside the screw conveyor provides cooling function when carbon black is discharged.

Parameter of Huayin Waste Tire Pyrolysis Machine

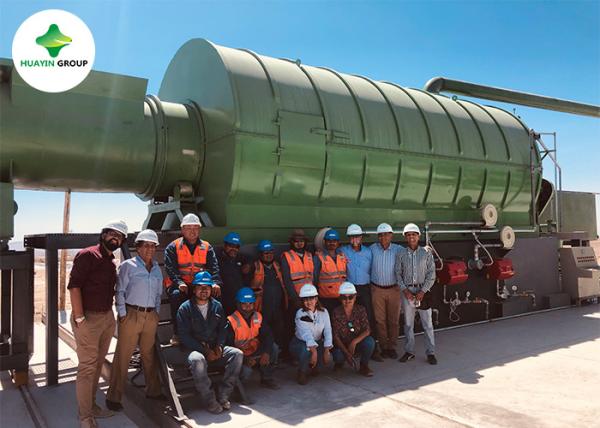

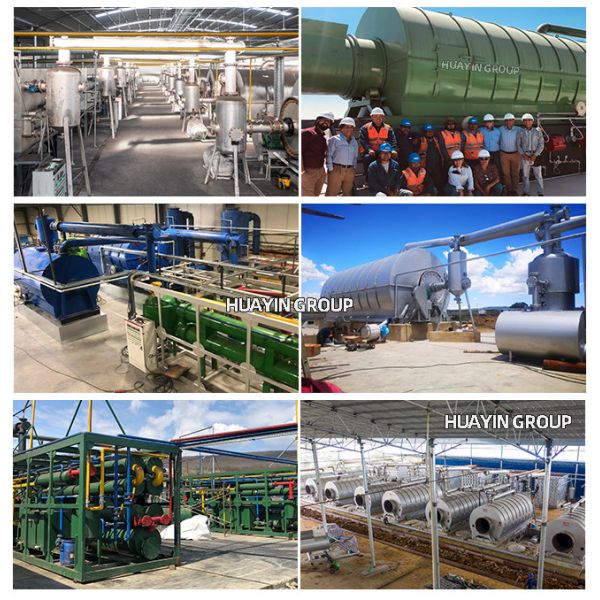

Huayin Global Successful Cases

HUAYIN equipment has been exported to over 80 countries including Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti, Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland, England, Thailand, Greece, Mexico, Benin, Indonesia, India, Singapore, Russia, etc. If you are interested in the waste tire to oil pyrolysis plant , welcome contact us.

Waste Pyrolysis Plant FAQ

1. Are there any requirements for the size of the raw material ?

Yes, if the tires waste and plastic bales are within 1.4m , then they can be fed into the reactor directly , if not , they are needed to be crushed.

2. Can waste tyre and plastic be pyrolyzed together at the same time?

Better not mixed them together. The pyrolysis temperatures of them are different , so it will affect the quality of the pyrolysis oil and carbon black. We recommend customers to classify the tires and plastic separately.

3. Is pyrolysis a green technology ?

Yes, the discharged smoke can reach the emission standard with Huayin powerful dedusting system. The flue gas will firstly washed with water then purifed by ceramic packing deduster device. For European customers , we have deduster with higher configuration, desulfurization tower and denitrification tower.
