12 TPD Pyrolysis Oil Plant 12 Ton Batch Type Waste Plastic To Oil Machine
12 TPD Pyrolysis Oil Plant 12 Ton Batch Type Waste Plastic To Oil Machine
Specifications
Brand Name :
Huayin
Model Number :
HY-12ton
Certification :
CE ISO
Place of Origin :
Xinxiang city, Henan,China
MOQ :
1 set
Price :
USD35000-45000 per set
Payment Terms :
L/C, T/T
Supply Ability :
220 sets per year
Delivery Time :
15-25 work days
Packaging Details :
plastic flims for pyrolysis reactor , wooden boxes for small parts
Product name :
12t/D Pyrolysis Tire And Plastic Waste To Oil Plant Machine To Make Fuel From Plastic
Opeartor :
3-4 workers
Function :
waste tyre and plastic to oil machine
Rotating speed :
0.4 turn/minute
Input raw material: :
waste tyres, plastic, pmma
Output product :
Fuel oil , Carbon black ,steel wire, syngas
Heating fuel :
Wood /Coal /Gas /Oil
type :
batch type
Description

12T/D Pyrolysis Tire And Plastic Waste To Oil Plant Machine To Make Fuel From Plastic

Product description

The function of the waste tire pyrolysis plant is to convert various kinds of waste tires like car tyres , motorcycle tires, bicycle tires, and OTR tires to fuel oil, carbon black, steel wire, and syngas. Due to the advantages of environmentally friendly, energy-saving, high safety level, and large profit of this equipment, it is widely used for the treatment of waste rubber products.

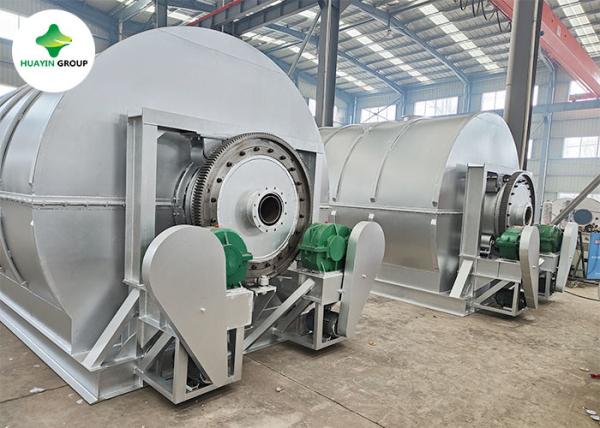

12 TPD Pyrolysis Oil Plant 12 Ton Batch Type Waste Plastic To Oil Machine

What you will get from different amounts of tires?

Capacity 6 tons waste tire 10 tons waste tire 20 tons waste tire
Tire oil 40-45% 2.4 ton 4 ton 8 ton
Tire carbon black 30% 1.8 ton 3 ton 6 ton
Tire steel wire 15% 0.9 ton 1.5 ton 3 ton
Syngas 5-10% The syngas generated during the pyrolysis process is recycled through a gas recycling system into the furnace to heat the reactor or are stored in a gas storage system for preheating as fuel next batch, reducing your fuel consumption while avoiding any possible air pollution caused by direct emission.

Specification

Item Content
Raw materials Waste tyre/rubber
Output 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas
Model Reactor size Capacity
HY1500*3000 1 T/batch
HY2200*5500 5 T/batch
HY2200*7500 7 T/batch
HY2600*6600 8 T/batch
HY2800*6000 9 T/batch
HY2800*6600 10 T/batch
HY2800*8000 15 T/batch
Remarks Support customization
Reactor material and thickness

Q345R/Q245R/310S (Boiler plate/stainless steel)

16mm/18mm
Land area 300-400㎡ (L30-40m*W10m)
Number of workers 3-4
Oil density and calorific value 0.89g/cm³&44.30KJ/KG
Processing time and power 10-24 hours. Averagely 15KW/h
Certification CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents

Main features

1. High efficiency. The feeding port of the pyrolysis reactor is 1400mm, so the waste material doesn’t need pretreatment, it can be put into the pyrolysis reactor directly with the auto feeder machine.

2. High stability. The rollers are engineered underfeeding port and oil outlet port which are external from the heating area to bring perfect rotating balance and longer service life.

3. Energy saving: Non-condensable gas will go back to the heating system for second burning as heating material, saving your heating fuel.

4. High oil yield: Larger condensation area to ensure sufficient condensation of oil gas into liquid oil.

5. Eco-friendly: The stainless steel deduster is filled with ceramic filters inside, which brings it strong dust adsorption capacity and a good dedusting effect.

6. High safety level: Equipped with Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly.

12 TPD Pyrolysis Oil Plant 12 Ton Batch Type Waste Plastic To Oil Machine

12 TPD Pyrolysis Oil Plant 12 Ton Batch Type Waste Plastic To Oil Machine

Oil yield of different kinds of raw material

Raw materials Oil ratio
PP (Microwave oven food box/yogurt bottles, ect.) 50%-75%
PS(fast food boxes/instant noodle boxes) 50%-75%
PE(plastic film/plastic wrap) 50%-75%
Plastic cable 80%
ABS(engineering plastic) 40%
Leftovers of paper Wet 15-20%,Dry 60%
House garbage 35%-50%
Plastic bags 50%
Submarine cable 75%
Rubber cable 35%
Sole 30%
Small tires 45%-50%
Big tires 35%-40%
