10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale
10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale
10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale
10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale
Specifications
Brand Name :
Huayin
Model Number :
HY-10Ton
Certification :
CE ISO
Place of Origin :
Xinxiang city, Henan,China
MOQ :
1 set
Price :
USD38000-55000 per set
Payment Terms :
L/C, T/T
Supply Ability :
220 sets per year
Delivery Time :
15-25 work days
Packaging Details :
plastic flims for pyrolysis reactor , wooden boxes for small parts
Product name :
10 Tons Waste Tyre Pyrolysis Plant Trade High Profit Pyrolysis Oil Industry
Heating fuel :
Wood /Coal /Gas /Oil
Input raw material: :
waste tyres, rubber scrap, plastic
Output product :
Fuel oil , Carbon black ,steel wire, syngas
Function :
Tire pyrolysis plant
Rotating speed :
0.4 turn/minute
Opeartor :
3-4 workers
type :
batch type
Description

10 Tons Waste Tyre Pyrolysis Plant Trade High-Profit Pyrolysis Oil Industry Scale

Product description

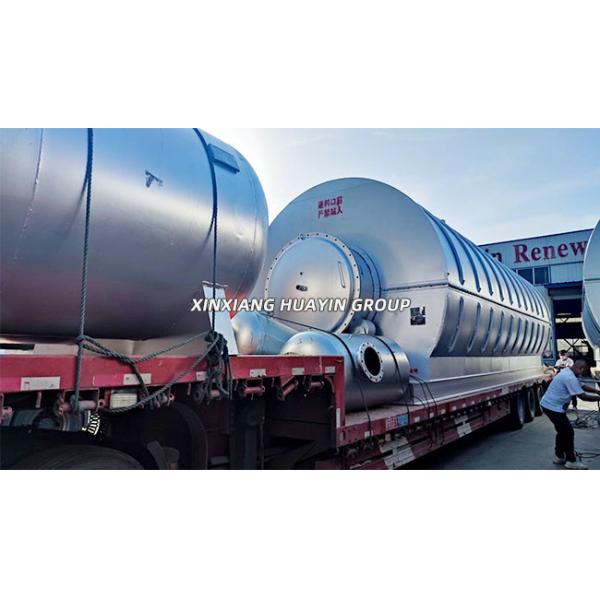

1. The waste tyre pyrolysis plant function is converting waste tyres into fuel oil, carbon black, steel wire, and syngas.

2. Capacity from 1 ton-15ton capacity per batch. Support customization.

3. Fast installation design & Bulk type design &Container design.

4. Environmental friendly, no black smoke and waste water discharged out.

5. Large condensing area ensures a high oil yield.

6. Low operating cost.

7. High Automation. Auto feeding systems and discharging carbon black devices make this recycling machinery much easier to operate.

8. Certification: CE, ISO, SGS, BV.

9. Material of reactor: Q345R/Q245R/310S+Boiler plate/Stainless steel, thickness 16mm/18mm.

Specification

Item Content
Raw materials Waste tyre/rubber
Output 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas
Model Reactor size Capacity
HY1500*3000 1 T/batch
HY2200*5500 5 T/batch
HY2200*7500 7 T/batch
HY2600*6600 8 T/batch
HY2800*6000 9 T/batch
HY2800*6600 10 T/batch
HY2800*8000 15 T/batch
Remarks Support customization
Reactor material and thickness

Q345R/Q245R/310S (Boiler plate/stainless steel)

16mm/18mm
Land area 300-400㎡ (L30-40m*W10m)
Number of workers 3-4
Oil density and calorific value 0.89g/cm³&44.30KJ/KG
Processing time and power 10-24 hours. Averagely 15KW/h
Certification CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents

10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale

Main features

1. High automation: Loading used tires/plastic into the pyrolysis reactor with 50ton hydraulic pressure, so the auto feeder can help you save labor and load more waste raw material, compared with manual feeding, the automatic feeder is more efficient.

2. 100% safety: The pyrolysis reactor is made of Q245R/Q345R boilerplate, which is high pressure and high-temperature resistance that ensure its longer service life. Adding perfect hot seal technology to ensure operation safely.

3. Environmental friendly: Flue gas is purified by ceramic packing dedusting device, finally no black smoke emitted.

4. High efficiency discharging device: Discharge carbon black from pyrolysis reactor after the production is finished in a sealed condition, no pollution and saves labor and time.

5. Strictly quality control. All of the steel plates are purchased from China's famous company " Anyang Iron and Steel Co., Ltd ", and the raw material inspection certificate can be provided to customers. For each set of machines, we will do ultrasonic nondestructive testing, and automatic submerged welding technology to ensure the machine quality.

10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale

Output product and usage

Output Products Application
Fuel Oil (40%-55%) 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc.
Carbon Black (30%-35%) 1. Make it to pellet or briquette as heating material.
Steel Wire (10%-15%) Sell to iron and steel factory directly.
Flammable Gas (8%-10%)

1. Recycled into the furnace to heat reactor instead of heating material.

2. Storage the excess gas to restart the next batch.

After-sales Service

1. Based on customers’ requests and budgets, we help you make the most economic solutions.

2. Providing a Turnkey project.

3. Engineers are available to go overseas for plant installation, test the machine, and train workers.

4. One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for complete machines.

10 Tons Waste Tyre Pyrolysis Plant Rubber Scrap Plastic Pyrolysis Plant Industry Scale
