Waste Plastic To Bio Diesel And Petrol Plant Fast Installation Pyrolysis Diesel Machine

Product description

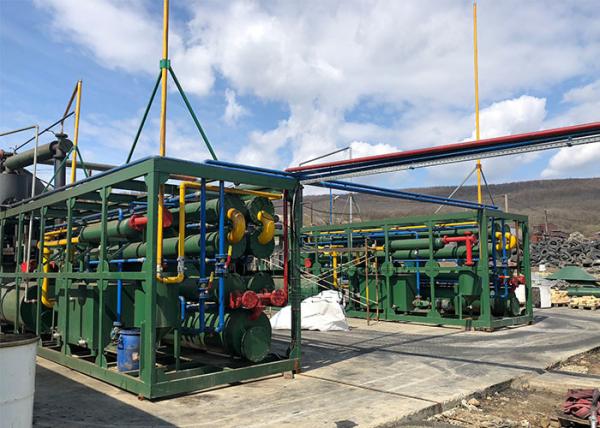

The plastic waste that can be seen everywhere seriously pollutes our living environment, how to dispose of this plastic waste properly is increasingly important. Huayin waste plastic pyrolysis plant can recycle the waste plastic to fuel oil, carbon black, and gas through pyrolysis technology, the whole process is environmentally friendly and brings you a large profit.

Output product and usage

-Fuel Oil (50%-75%)

1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in diesel engines like trucks, tractors, etc.

-Carbon Black (30%-35%)

Slag for construction.

-Flammable Gas (8%-10%)

1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.

Specification

Working process

1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.

2. Heating the pyrolysis reactor and producing oil.

3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.

4. Cool the pyrolysis reactor after oil production is finished.

5. Discharging carbon black and steel wire.

Features

1. High automation: Loading used tires/plastic into the pyrolysis reactor with 50ton hydraulic pressure, so the auto feeder can help you save labor and load more waste raw material, compared with manual feeding, the automatic feeder is more efficient.

2. 100% safety: The pyrolysis reactor is made of Q245R/Q345R boilerplate, which is high pressure and high-temperature resistance that ensure its longer service life. Adding perfect hot seal technology to ensure operation safely.

3. Environmental friendly: Flue gas is purified by ceramic packing dedusting device, finally no black smoke emitted.

4. High efficiency discharging device: Discharge carbon black from pyrolysis reactor after the production is finished in a sealed condition, no pollution and saves labor and time.

5. Strictly quality control. All of the steel plates are purchased from China's famous company " Anyang Iron and Steel Co., Ltd ", and the raw material inspection certificate can be provided to customers. For each set of machines, we will do ultrasonic nondestructive testing, and automatic submerged welding technology to ensure the machine quality.
