3 Ton Waste Plastic Pyrolysis Plant Household Garbage
3 Ton Waste Plastic Pyrolysis Plant Household Garbage
Specifications
Brand Name :
Huayin
Model Number :
HY-3Ton
Certification :
CE ISO
Place of Origin :
Xinxiang city, Henan,China
MOQ :
1 set
Price :
USD35000-68000 per set
Payment Terms :
L/C, T/T
Supply Ability :
220 sets per year
Delivery Time :
15-25 work days
Packaging Details :
plastic flims for pyrolysis reactor , wooden boxes for small parts
Reactor material :
Q345R/Q245R boiler plate
Cooling method :
circle water cool
Input raw material: :
waste plastic ,PP PE PS,ABS,pmma
Output product :
Fuel oil , Carbon black ,gas
Heating fuel :
Wood /Coal /Gas /Oil
Function :
plastic pyrolysis plant china
Capacity :
1-15ton per batch
Rotating speed :
0.4 turn/minute
Description

3 Ton Waste Plastic Household Garbage Pyrolysis Machine Low Cost Pyrolysis System

1. The waste plastic pyrolysis plant function is converting waste plastic into fuel oil, carbon black, and syngas.

2. Capacity from 1 ton-15ton capacity per batch. Support customization.

3. Fast installation design & Bulk type design &Container design

4. Environmental friendly, no black smoke and waste water discharged out.

5. Large condensing area ensures a high oil yield.

6. Low operating cost.

7. High Automation. Auto feeding systems and discharging carbon black devices make this recycling machinery much easier to operate.

8. Certification: CE, ISO, SGS, BV.

9. Material of reactor: Q345R/Q245R/310S+Boiler plate/Stainless steel, thickness 16mm/18mm.

Output product and usage

Output Products Application

Fuel Oil

(50%-75%)

 1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in diesel engines like trucks, tractors, etc.
Carbon Black (30%-35%) Slag for construction.
Flammable Gas (8%-10%)

1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

Main Features

A. Safety. We treat safety as the first important thing in production.

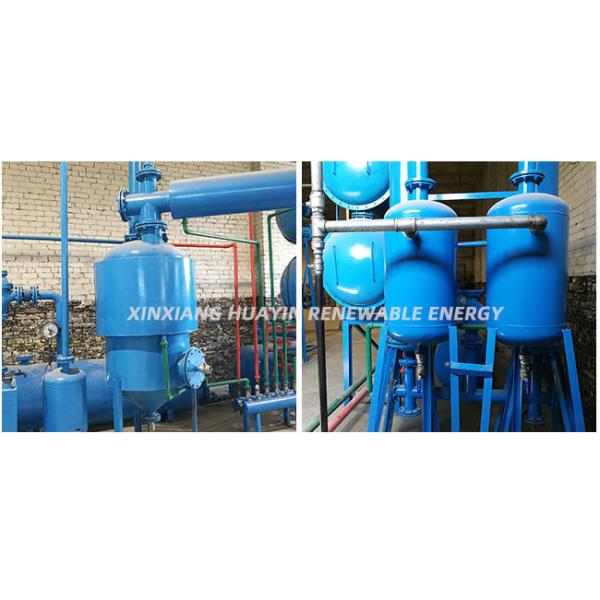

1. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.

2. Vacuum device makes the reactor work under ordinary pressure or negative pressure.

3. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

B. Environmental protection

1. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.

2. Carbon black will be discharged out in sealed condition to avoid pollution.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

C. Energy saving

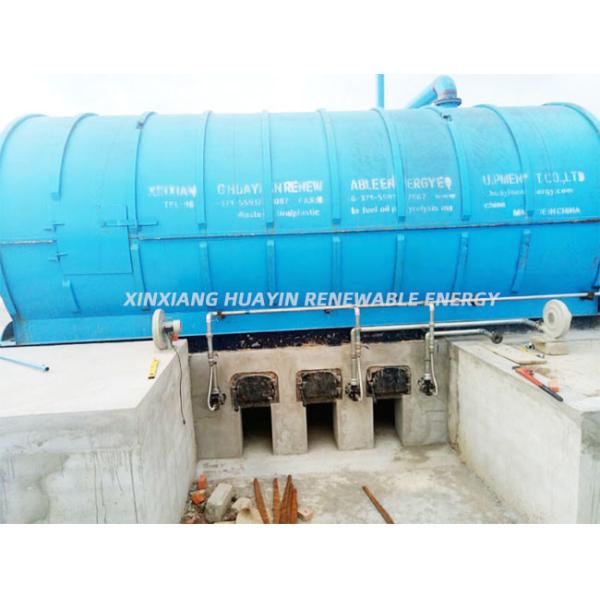

1. The flame path is designed as a spiral so that the quantity of heat can be fully used.

2. The syngas is recycled to heating furnace for burning, thus saving your heating fuel.

3. The insulation cover is formed by 3 layers: steel plate, rock wool, and refractory cement. Excellent thermal insulation effect helps save fuel.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

Specification

Model HY-05 HY-08 HY-10 HY-15
Raw material Waste rubbers/tyres/plastic
Output product 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas
Daily Handling capacity 5 tons 8 tons 10 tons 12 tons
Machine dimension(mm) D2200*L5500 D2600*L6600 D2800*L6600 D2800*L8000
Landing Area 200m2 250m2 300m2 350m2
Working pressure Normal pressure
Main engine rotating speed 0.4R /min
Power 15KWH
Cooling Mode Circle Water
Heating Mode Direct
Oil Yield 40%-50%
Noise dB (A) <=85
Working Mode Batch type

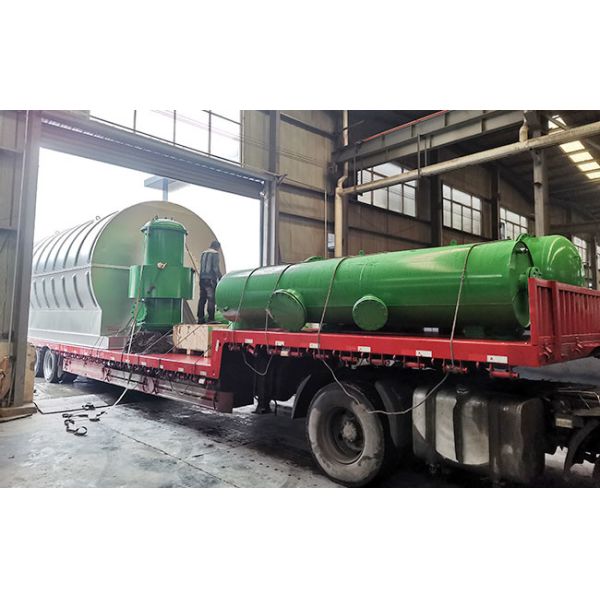

Packing and shipping

Packaging details

1*40FR and 1*40HQ for 10 tons

2*40 HQ for 5 tons

Weight: about 30tons

All goods are packed with the export standard package to make sure

no damage during transportation.
Detail details about 15 days after receiving the deposit.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

Our services

The engineer will be sent to your place to Guide Installation, Test running, and Training of workers.

Besides, Installation preparation manuals will be sent to you so that you can do relevant preparation work before our engineer arrives.

3D drawing, layout drawing, and foundation drawing will be provided based on your land size and other specific requirements.

3 Ton Waste Plastic Pyrolysis Plant Household Garbage

For more details, welcome contact us !
