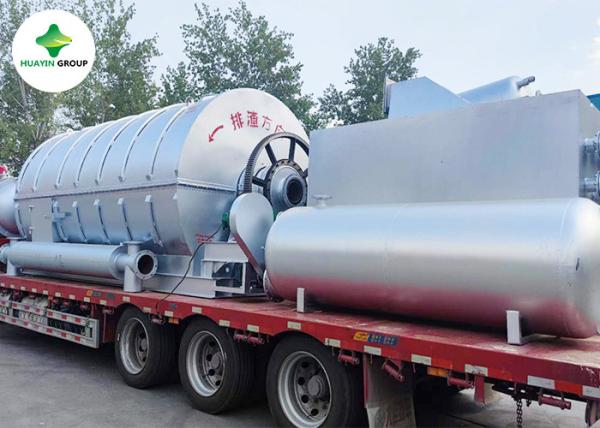

1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel
1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel
Specifications
Brand Name :
Huayin
Model Number :
HY-1TPD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 35000-55000/set
Payment Terms :
L/C, T/T
Supply Ability :
220 sets per year
Delivery Time :
15 days
Packaging Details :
Nude packing
Raw material :
waste plastic and tyres
Type :
Batch type
Cooling method :
circle water cool
Output product :
Fuel oil , Carbon black , Steel wire, gas
Heating fuel :
Wood /Coal /Gas /Oil
Voltage :
380V
Capacity :
1-15ton per batch
Internal volume :
40.6 m³
Rotating speed :
0.4 turn/minute
Description

1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel

The function of the waste tire/plastic pyrolysis plant is to convert various kinds of waste tires like car tyres , motorcycle tires, bicycle tires, and OTR tires , plastic scrap to fuel oil, carbon black, steel wire, and syngas. Due to the advantages of environmentally friendly, energy-saving, high safety level, and large profit of this equipment, it is widely used for the treatment of waste rubber and plastic products.

1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel

Output product and usage

Fuel Oil (50%-75%)

1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in diesel engines like trucks, tractors, etc.

Carbon Black (30%-35%)

Slag for construction.

Flammable Gas (8%-10%)

1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.

Specification

Item Content
Raw materials Waste tyre/rubber
Output 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas
Model Reactor size Capacity
HY1500*3000 1 T/batch
HY2000*4000 3T/batch
HY2200*6000 5 T/batch
HY2600*6000 7 T/batch
HY2600*6600 8 T/batch
HY2800*6000 9 T/batch
HY2800*6600 10 T/batch
HY2800*8100 15 T/batch
Reactor material and thickness

Q345R/Q245R/310S (Boiler plate/stainless steel)

14mm/16mm/18mm
The whole plant weight 15-45 tons
Land area 300-400m2(L30-40m*W10m)
Number of workers 3-4
Processing time and power 10-24 hours. Averagely 15KW/h
Certification CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents

Our company

Established in 1993, Xinxiang HUAYIN Renewable Energy Equipment Co., Ltd is an environmental protection plant manufacturer integrating product R&D, design, production, marketing, installation and after-sales. HUAYIN Energy enjoys a technical and service team composed of more than 30 experienced engineers and a number of invention patents, CE, SGS, ISO9001 and ISO14001 certifications.

1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel

1000kg Plastic Pyrolysis Plant Machine To Turn Waste Plastic Into Fuel
