High Stability PZT Ultrasonic Transducer For 75KHz Brass Housing Level Sensor
High Stability PZT Ultrasonic Transducer For 75KHz Brass Housing Level Sensor
Specifications
Place of Origin :
China
Brand Name :
Yujie
Model Number :
KQ-75KH
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
carton
MOQ :
100 Piece/Pieces
Price :
Negotiable
Certification :
ISO9001
Payment Terms :
T/T, Western Union
Delivery Time :
3~20 working days
Theory :
Ultrasonic Sensor
Usage :
Level Sensor
Diameter :
38mm
Material :
Plastic
Color :
Brass
Port :
Shenzhen
Description

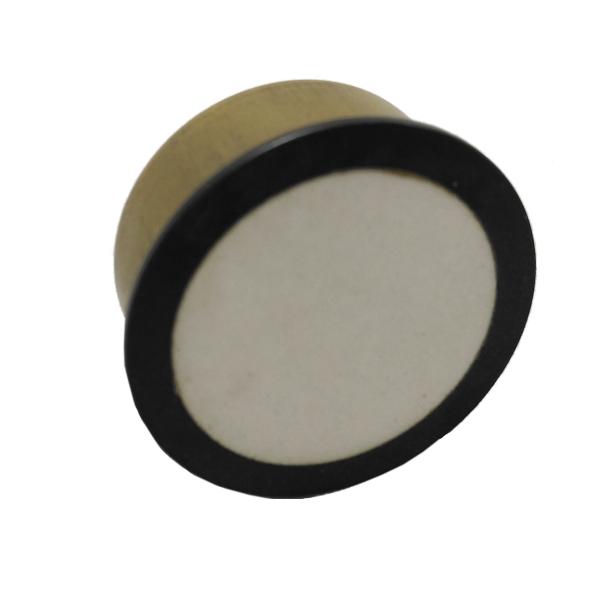

PZT Ultrasonic Transducer Of 75KHz brass housing level sensor

Features:

1) Rugged sealed construction

2) Cylindrical design allows for installation in various applications

Specifications:

Best Operating Frequency : 75 KHz+/- 5%
Min. Transmit Sensitivity: 111dB re 1 μPa/V at 1m
at best transmit frequency Min. Receive Sensitivity: -162 dB re 1V/μPa
at best receive frequency Min. Parallel Resistance: 170Ω +/- 30%
Minimum sensor range: 20cm
Maximum sensor range: 10m
Free (1kHz) Capacitance: 2450pF +/- 15%
Beam width (-3dB full angle): 15° +/- 2°
Maximum Driving Voltage:

1000Vpp

(2% duty cycle tone burst)
Operating Temperature: -20° C to 70°C
Waterproof standard: IP65
Weight : 40g

Materials:

Housing: Glass filled polyester

Acoustic Window: Glass reinforced epoxy

All specifications typical at 22° C and subject

to change without notice.

Pulse-Echo Mode

Actual range may vary , depending on drive

Circuitry and signal processing

Applications:

. level measurement

. Automation control

. Proximity

. Obstacle avoidance

. Robotics
