Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-E802-1
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
power :
Electronic
product name :
environmental testing chambers
Temperature Resolution :
0.1 ℃
Light Temperature range :
50 ℃ ~ 70 ℃ / temperature tolerance of ± 3 ℃
Humidity range :
45% ~ 70% R.H
Type :
UVB Accelerated Weathering Testing Chamber
Description

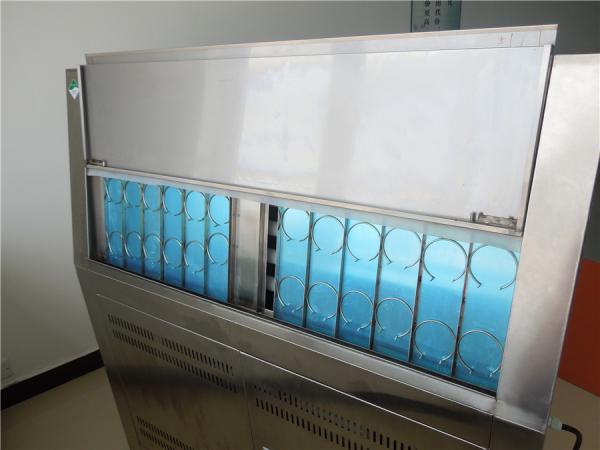

SUS 304 Steel UVB Accelerated Weathering Testing Chamber For Sunlight Resistant Test

Product description:

SUS 304 Steel UVB Accelerated Weathering Testing Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and SUS 304 Steel UVB Accelerated Weathering Testing Chambers can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

Meet the ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S.GOVT standards and national standards.

Application industry wide range, such as: paint ink paint, resin, plastic, printing and packaging, adhesives, automotive, motorcycle industry, cosmetics, metal, electronics, electroplating, medicine and so on.

Chamber Structure:

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

Control System:

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.

The main technical parameters:

Studio size (W×D×H) 1140mm×400 mm×500 mm
Overall size (W×D×H) 1340mm×530 mm×1400 mm
Center distance of the lamp 70mm
Wavelength range uv-a wavelength range of 315 to 400nm, the peak at about 340nm
Radiation intensity within 1W/m2/340nm
Temperature resolution 0.1℃
Light temperature range 50℃~70℃ / temperature tolerance is ±3℃
Condensation temperature range 40℃~60℃ / temperature tolerance of ±3℃
Measuring range of blackboard thermometer 30~80℃ / tolerance is ±1℃
Temperature control mode PID self - tuning temperature control mode
Humidity range about 45%~70% r.h.
Water tank requirements water depth not more than 50mm, and with an automatic water supply controller
Standard specimen size 75×150mm 48pcs
Recommended operating environment 5~35℃, 40%~85%R•H, 300mm away from the wall
Voltage 220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch
Lamp selection domestic huaqiang lamp/American Atlecs lamp
The distance between the specimen and the nearest parallel surface of the lamp surface is about 50mm±2mm

Test Specimen Mounting:

The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

ection institutions and academic fields.
