Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
Specifications
Place of Origin :
China
Brand Name :
HAIDA
Model Number :
HD-M008
MOQ :
1 set
Price :
USD 4,990
Packaging Details :
Strong wooden case package
Delivery Time :
15 days after received deposit
Payment Terms :
Full payment before delivery
Supply Ability :
150 set per mouth
product name :
Cookware Testing Machine
Power :
one phase, AC 220V, 50/60Hz (or according to customer’s requirement)
Speed :
6.5 ±0.2m /min
Counter :
4 digits pre-set counter
Description

Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance

APPLICATIONS& TEST PURPOSE:

Fry pan or wok (with non stick surface) is fixed well on the platen and abrasion pad moves forward on the surface of cookware. Abrasion pad is driven by the pull of guide rail with a certain speed (set in the standard). Times and height can be set according to customer’s requirement. According to BS 7069, the horizontal reciprocating stoke is 100 mm ±5 mm.

PRINCIPLE:

1. Abrasive pad, consisting of a random nylon web impregnated with phenoli resin and aluminium oside2) 70+/-5mm long x 30+/-5mm wide x approximately 5 mm thick bonded to a rigid plastics block, of similar dimensions, suitably loaded to apply a total downward force of 15.0+/-0.2N to the pad

2. Reciprocating support, for mounting the item of cookware under test , capable of controlled horizontal movement of the item of 100+/-5mm in each direction at an average speed of 6.5+/-0.2m/min.

DESIGN STANDARD:​ BS 7069

STANDARD FEATURES:

Abrasive pad “Scotchbrite” No. 7447 or 447.
Horizontal reciprocating stroke 100 mm ±5 mm
Speed 6.5 ±0.2m /min
Counter 4 digits pre-set counter.
Power one phase, AC 220V, 50/60Hz (or according to customer’s requirement)

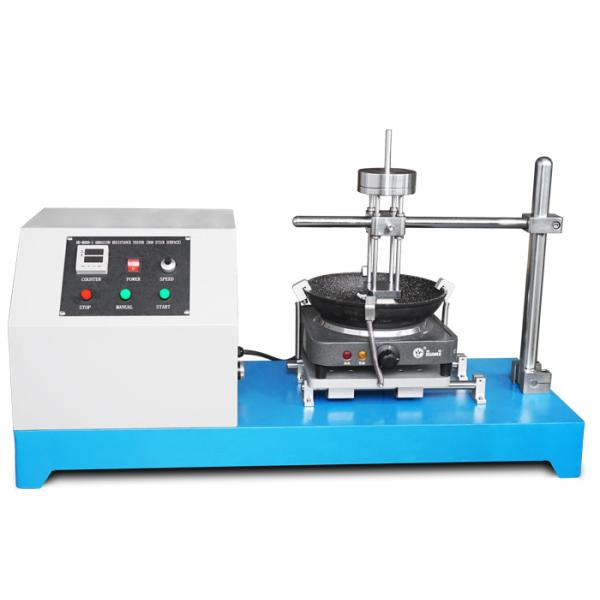

PRODUCT IMAGE

Non-Stick Pan Test Cookware Testing Machine With Abrasion Resistance

THE INTRODUCTION OF HAIDA
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Non-Stick Pan Test Cookware Testing Machine With Abrasion ResistanceNon-Stick Pan Test Cookware Testing Machine With Abrasion Resistance

Non-Stick Pan Test Cookware Testing Machine With Abrasion ResistanceNon-Stick Pan Test Cookware Testing Machine With Abrasion Resistance
