Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-F754
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Control method :
LCD Touch Screen
power :
Electronic
product name :
furniture testing equipment
Standards :
ASTM D3574 and ISO 8307
Test sample size :
100 mm (L) × 100 mm (W) × 50 mm (H)
Diameter of iron ball :
16±0.05 mm
Description

Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen

Pecifications:

ASTM D3574 LCD Touch Screen Ball Rebound Foam Furniture Testing Equipment
1. LCD Touch screen interface
2. According to ASTM D3574 and ISO 8307
3. Automatic calculate result

The Usage:

ASTM D3574 LCD Touch ScreenBall Rebound Foam Furniture Testing Equipment is designed and manufactured in accordance with ASTM GB/T6670-2008, American Standard D3574and ISO8307 testing standards. And it suits for testing rebound performance of soft polyurethane foam ball. The tester through a given diameter and weight of iron ball dropping on foam sample at a certain height, and then calculate the percentage between maximum height of iron ball rebound and the height of iron ball dropping, this percentage is also called resilience ratio . Resilience ratio means foam rebound performance of poly foam. The tester adopts the microprocessor control, Chinese liquid crystal display, and it can print the test result. The tester is safe, reliable, with high measuring precision.

Parameter:

1. Distance of iron ball dropping 460+0.5%mm ( GB), 500+0.5%mm ( American Standard )
2. Diameter of iron ball 16 ± 0.05 mm
3. Controller Use microprocessor to control, LCD Chinese display, and print test data.
4. Ball rebound accuracy <0.5%
5. Test sample size 100 mm (L) × 100 mm (W) × 50 mm (H)

6. Automatic calculation of average rebound height

7. Configuration of Automatic calculation of average resilience ratio

8. One set of tester (including release mechanism, capture mechanism and height adjustment mechanism)

9. One set of electro-optical distance measurement sensor

10. One set of control box(Chinese LCD display)

11. One set of micro type printer(desktop)

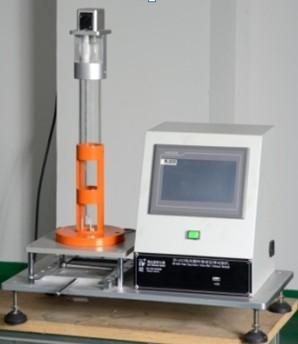

Product Image

Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen

Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen

Ball Rebound Foam Furniture Testing Machines ASTM D3574 With LCD Touch Screen
