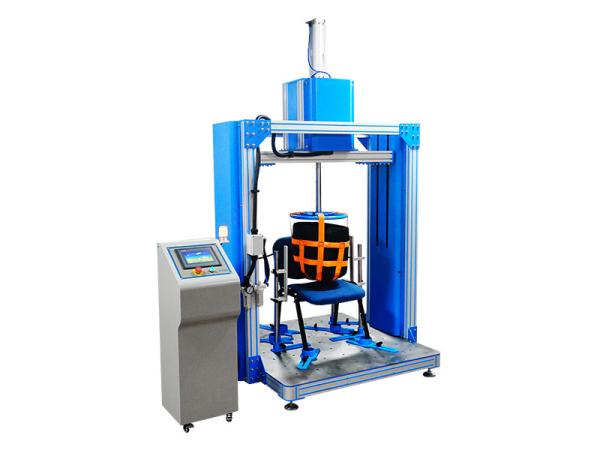

Drop Impact Test Machine For Chair To Test Durability Of The Seat
Drop Impact Test Machine For Chair To Test Durability Of The Seat
Drop Impact Test Machine For Chair To Test Durability Of The Seat
Drop Impact Test Machine For Chair To Test Durability Of The Seat
Drop Impact Test Machine For Chair To Test Durability Of The Seat
Drop Impact Test Machine For Chair To Test Durability Of The Seat
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO,CE,
Model Number :
HD-F736
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Drop Weight :
57kg,102kg,136kg
Drop Height :
30mm,36mm,152mm
Display Mode :
Touch Screen
Cylinder Stroke :
300mm
Impact Speed :
10～30times/min
Seat Height :
200mm～600mm(adjustable)
Description

Drop Impact Test Machine For Chair To Test Durability Of The Seat

EQUIPMENT DESCRIPTION

Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

Drop Impact Test Machine For Chair To Test Durability Of The Seat

GENERL SPECIFICATIONS

  • Packaging Dimensions: (W*D*H) 1640*1340*2010mm
  • Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
  • Gross Weight: 726KG
  • HS Code: 9024800000

DESIGN STANDARD: Bifma x5.1-2017

TECHNICAL PARAMETERS

Control Mode PLC Control
Display Mode Touch Screen
Cylinder Stroke 300mm
Impact Speed 10～30times/min
Seat Height 200mm～600mm(adjustable)
Drop Weight 57kg,102kg,136kg
Drop Height 30mm,36mm,152mm
Test Degree 1～999999
Weight About 500kg
Power Supply 1∮ AC 220V
Rate of Work About 200W
Data Output USB
Maximum external dimension 1200mm×1450mm×2600mm(L*W*H)
Main testing item one impact and impact durability test

Configuration:

Configuration Name Details

Standard Configuration

 Documents Operation Manual*1 piece
Factory Inspection Report*1 piece
Operation Video in USB flash disk with machine*1 piece
Power line 1 piece
Air Pipe 1 piece
Weight Bag woven bag*1 piece
Small steel ball bag 10kg *12 pieces +5kg*3 pieces + 1kg *2 pieces
Testing Clamp Chair Fixing Seat for chair foot *5 pieces;
Sample damage fixture*1 piece;
Limit clamp*2 piece
Fixed height block 152mm*1piece ；36mm*1 piece；30mm*1 piece

Optional

Configuration

 air compressor Suggest ≥ 3P
Plug 1 piece(Per customer country’s standard)

SPECIFICATIONS

Test Machine for Chair is used to test the durability of the seat of the chair.

USAGE

Chair Seating Cyclic Impact Tester is a two station testing equipment.

According to test Standard: BIFMA X5.1-2002, Test No. 8,11
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.
