High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-E808-60A
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Brine tank capacity :
15L
Equipment material :
P.V.C rigid plastic board
Lab volume :
108L
Power :
Electronic
product name :
corrosion testing equipment
Temperature precision :
±1℃
Temperature range :
35℃～55℃
use :
paint;electroplating;organic and inorganic coating;anode processing;antirust oil and so on
Description

High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A

1. Usage

Salt spraying test chamber adapted to the surface treatment of various materials, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

2. Specifications:

Salt Spraying Test Chamber , Corrosion Testing Machine

Model

HD-E808-60A

Inner Box Size (L×W×H)

60×40×45 cm

Outside Box Size(L×W×H)

107×60×118 cm

Equipment Material

Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board

Temperature Range

35°C~55°C

Temperature Fluctuations

≤±0.5°C

Temperature Uniformity

≤±2°C

Temperature Precision

±1°C


Test Chamber Temperature

Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C

Brine Temperature

35°C±1°C

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume

108L

Brine Tank Capacity

15L

Power

AC220V,10A

Multiple Safety Protection Devices

Current discharge protection, over pressure protection,over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/ Equipment each 1 set

Standard

CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770;
ASTM: B117, B268

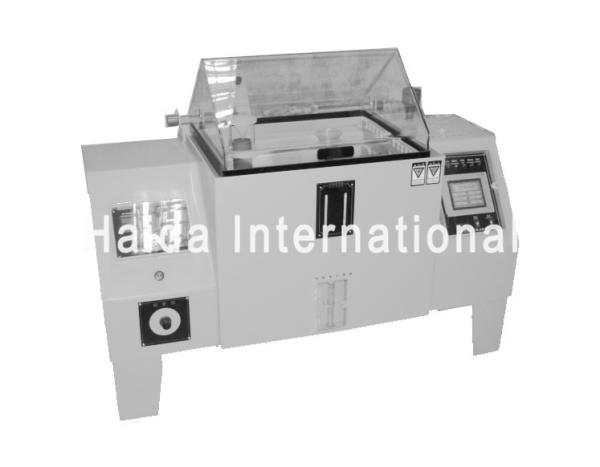

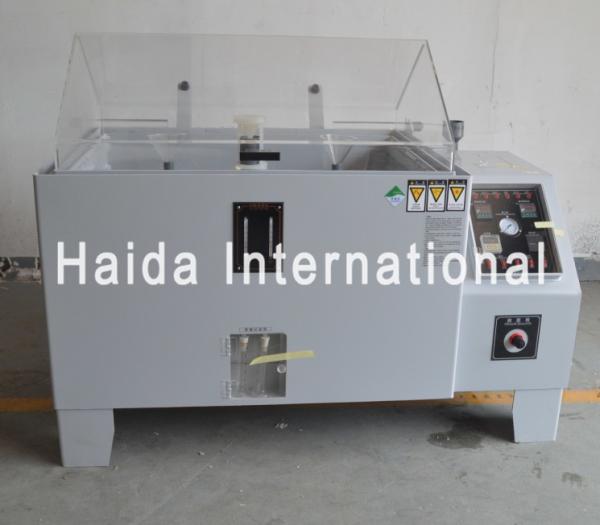

3.The picture
Salt Spraying Test Chamber , Corrosion Testing Machine

High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A


High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
The faceplate
High Performance Salt Spray Corrosion Test Chamber Standard HD-E808-60A
