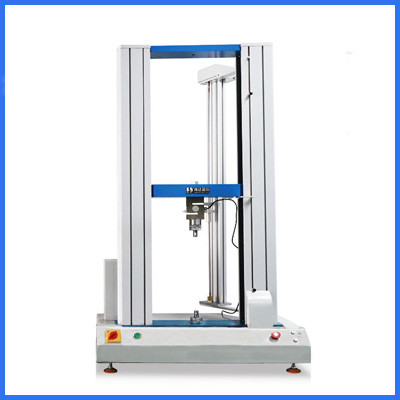

Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-B609B-S
Display Device :
LCD Display,PC
Resolution :
1/250,000
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
type :
universal tensile testing machine
Load accuracy :
≤0.5%
Capacity :
5-200kg
Screw :
Imported ball screw
Maximum stroke :
900mm (including fixture)
Description

Computer Control Tensile Strength Test Machine with Celtron Load Cell Sensor for Button

Application:

This machine is especially used for button for clothing, toys or other products pull test with specified grip and also can be used for tape, paper, film tensile test with related tensile clamp.

Adhesives Tape/Pressure Sensitive Tape

  • EN 1719: Loop Tack Test
  • ASTM D3654: Shear Adhesion Test
  • ASTM D3759: Tensile &Elongation Test
  • FTM: 180&90 Degree Peel Test, Loop Tack
  • EN 1939, ASTM D3330: 180&90 Degree Peel Test
  • ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Main Technical Parameter:

Items

Specification

Capacity

5-200kg imported sensor

Unit Switchover

gf, KGF, N , kN, LBf , T

Motor

400w panasonic servo motor

Drive

400w panasonic servo drive

Screw

imported ball screw

Control mode

panel control (LCD display), can be connected to the computer, Windows mode operation

Test Speed

0.1-500mm/min (adjustable )

Maximum stroke

900mm (including fixture)

Resolution

1/250,000

Load accuracy

≤0.5%

Overall size

(L*W*H) 520*515*1250mm

Weight

Approx.70kg
Power supply 1∮ AC,220V
