Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen

Specifications

Brand Name :

Haida

Model Number :

HD-E714-220

Place of Origin :

Guangdong, China (Mainland)

MOQ :

1 Set

Price :

Negotiable

Payment Terms :

L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Delivery Time :

20 days after order confirmed

Packaging Details :

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Temperature range :

-40~+85℃

Cooling speed :

≥1℃/min in average (without loading)

Heating speed :

≥1℃/min in average (without loading)

Pressure range :

Ordinary pressure ~ 1Kpa

Pressure deviation :

±5%

Description

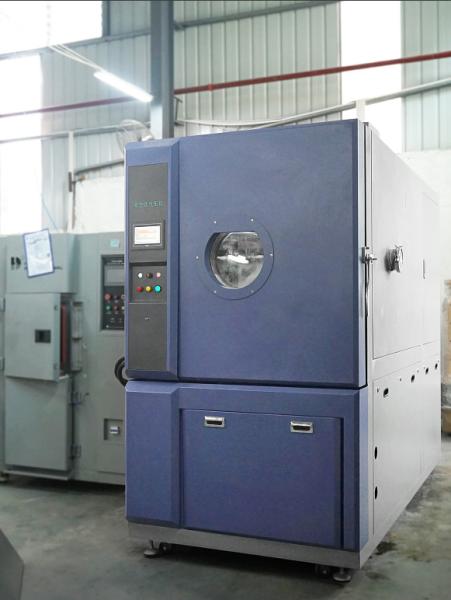

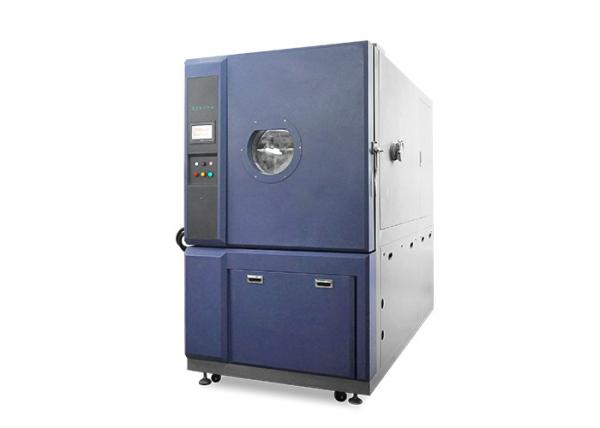

Altitude Test Chamber temperature&humidity and altitude environment test chamber

Altitude Test Chamber can combine temperature and altitude environment with optional humidity for simultaneous environmental testing. It’s used in line aeronautics, aerospace, communications, information, electronics, electrical and so on. This combination of elements allows precise simulation of real-life condition a product might encounter at various altitude levels.

STANDARD FEATURES

Item	Specification
Internal dimension (WDH)	600600600mm
Internal material	#304 stainless steel, mirror finished
External material	Stainless steel with paint spray
Temperature range	-40~+85℃
Temperature deviation	±2℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≤2℃
Cooling speed	≥1℃/min in average (without loading)
Heating speed	≥1℃/min in average (without loading)
Pressure range	Ordinary pressure ~ 1Kpa
Decompression time	≤10min
Pressurized method	First heating/cooling, then vacuumize
Pressure deviation	±5%
Insulation	high density rigid Polyurethane foam
Test time	0.1~999.9 h/m/s, adjustable.
Power system	Three-phase, 380V, 50Hz
Safety protection device	Protection for leakage Over-temperature Compressor over-voltage and overload Heater short circuit Water shortage
Air circulation system
Air circulation device	Vacuumed ventilator to maintain the stable temperature
Heating method	Electrical heating
Refrigeration system
Compressor	German brand, refrigeration system with Semi-hermetic sealed refrigeration
Cooling method	Water-cooling
Accessories	Expansion valve, filter, pressure controller, oil pressure controller, globe valve, solenoid valve and oil separator adopt imported brands.
Refrigerant	R404A and R23
Vacuum system
Composition	Vacuum measuring system and control system
Vacuum meter measuring	Adopt pressure sensor to measure the meter, the data will be transferred into electric signal, then it’s input into controller for displaying and controlling.
Controlling accessories	Pressure sensor, transducer, pressure regulating valve and gas regulating valve adopt famous brands.
Control system
Controller	LCD touch screen, programmable control temperature and pressure
Control accuracy	Temperature, 0.5℃. Pressure, 1.0 Pa
Display resolution	Temperature, 0.1℃. Pressure, 0.01 Pa
Interface	RS 232, USB or LAN, can be remote control.

TEST STANDARD EN50125-1:2014 FOR REFERENCE
