Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Air - Cooled Vibration Test System With Temperature Humidity Test Chamber
Specifications
Brand Name :
Haida
Model Number :
HD-E809
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
15 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Temperature range :
+10~+100℃
Humidity range :
20~98%RH (Refer Image below)
Cooling speed :
1℃/min in average (without loading)
Heating speed :
3℃/min in average (without loading)
Temperature sensor :
PT-100 dry and wet bulb sensor
Approx. weight :
990kg
Description

Air - Cooled Environmental Test Chambers / Vibration System With Temperature Humidity Test Chamber

PRODUCT DESCRIPTION

The test system adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature&humidity and vibration environment condition. It’s widely used to do environmental endurance test, reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on.

TEMPERATURE & HUMIDITY CHAMBER SPECIFICATIONS

Item Specification
Internal dimension (W*D*H) 600*800*850mm
Temperature range +10~+100℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray
Cooling method Air-cooled
Controller

Programmable control temperature and humidity

Can set different parameter for cyclic test
Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Sample tray SUS#304 stainless steel, 2pcs
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage

Air - Cooled Vibration Test System With Temperature Humidity Test Chamber

Air - Cooled Vibration Test System With Temperature Humidity Test Chamber

STANDARD SPECIFICATIONS

Item Description
Sine Force 5.88KN
Shock Force 11.76KN
Frequency Range 5~3000 Hz
Displacement 51 mm
Max. Velocity 2m/s
Max. Acceleration 981 m/s² (without loading)

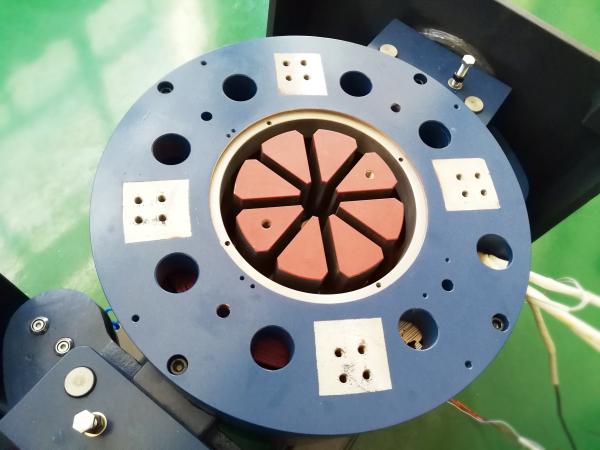

Armature Diameter 200 mm
Permitted Load Torque ＞300 N•m
Effective Armature Mass 6 kg
Max. Load Capacity 100kg
Magnetic Leakage ≤1 mT
Axial Vibration Isolation Frequency ＜3 Hz
Load attachment 16 stainless steel M8 inserts
Dimension(L*W*H) 850*665*760mm
Approx. weight 990kg

POWER AMPLIFIER

Air - Cooled Vibration Test System With Temperature Humidity Test Chamber

STANDARD SPECIFICATIONS

Item Description
Max. Output Power 8kVA
Frequency Response ＞65 dB
Output Voltage 120 Vrms
Conversion Efficiency ＞95%
Dimension(L*W*H) 800*600*1558mm
Approx. Weight 320kg
Safety Protection Device

Over voltage protection

Over current protection

Over-temperature protection

Over displaced protection

Cooling system failure protection

Excitation power failure protection

VERTICAL HEAD EXPANDER

Air - Cooled Vibration Test System With Temperature Humidity Test Chamber

STANDARD SPECIFICATIONS

Item Description
Expander Size 600*600mm
Material Aluminum alloy
Max. Work Frequency 2000Hz
Approx. Weight 35kg
Blower
Power 4kW
Air Volume 0.3 m³/s
Air Pressure 0.048kgf/cm²
Blower Pipe Diameter 120mm
Dimension(L*W*H) 570*800*1520mm
Approx. Weight 108kg
