Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Automatic Universal strength Testing Machine Desktop Tensile Test Equipment
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-B602
Power :
AC Motor
Port :
ShenZhen
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Load Accuracy :
≤1%
Capacity :
5, 10, 20, 25, 50, 75,100,150, 200kg
Elongation Accuracy :
0.001mm
Max. Stroke :
1000mm (including fixture)
Motor :
AC Motor
Resolution :
1/100,000
Description

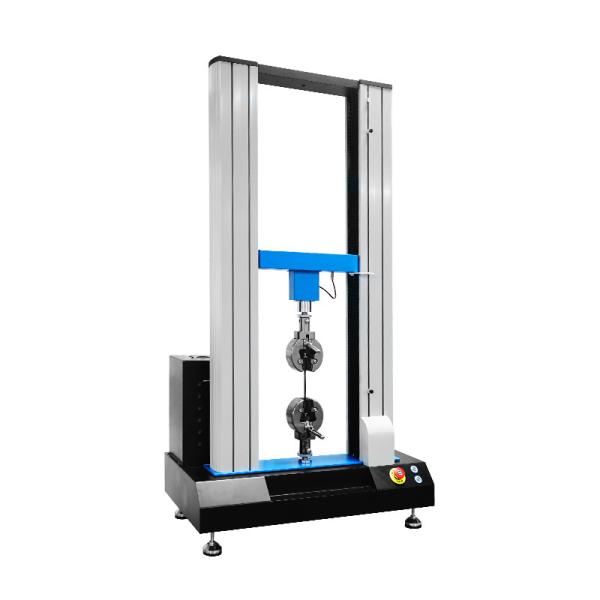

Automatic Universal Strength Testing Machine Desktop Tensile Test Equipment

Product Description:

Tensile Testing Equipment is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

Automatic Universal strength Testing Machine Desktop Tensile Test Equipment

Automatic Universal strength Testing Machine Desktop Tensile Test Equipment

Product Features:

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Main Technical Parameter:

Items Specification
Capacity 5, 10, 20, 25, 50,75, 100, 150,200kg
Unit Switchover G, KG, N, LB
Display Device LED liquid crystal display
Resolution 1/100,000
Load Accuracy ≤1%
Max. Stroke 900mm (including fixture)
Test Speed 50-300mm/min (adjustable )
Motor AC Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1∮, AC220V, 50HZ
Weight Approx.40kg
Accessories

One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual
