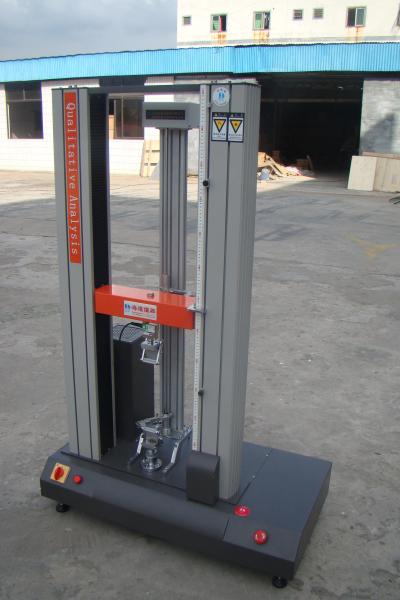

Double Column Universal Tensile Strength Testing Machine For Plastic / Rubber / Fabric

Briefly Introduce:
These series of Tensile testing equipment is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

Design Criteria

ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test

ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test

ASTM D624-00, ISO 34-1: Tearing strength Test

ASTM D395-03, ISO 815-1: Compression Set Test

ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D

ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test

ISO 2781(Method A): Density Test

ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter

ASTM D1646:Mooney Viscometer

Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sample

5. Software can issue word/excel report with results for max. force, elongation, tensile strength,peel strength, tear strength, compression strength, etc.

Main Technical Parameter

Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates

easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be

switched easily
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.

Optional Accessories:

Clamps

• Plastic & Rubber Wedge Clamp (1000kg)
• Metal Wedge Clamp(2000kg)
• Bend Clamp
• Compression Plate

Load Cell:

• 500kg load cell
• 100kg load cell

Calibration Certificate

Calibration Device
