Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-F734
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Machine size :
1700x1450x2100mm（L*W*H）
Weight of Seat :
225 lb or specified
Air requirement :
Compressed air 6 kg/cm2
Stroke :
0~18 in
Force Angle :
0~90°
Test Speed :
0～30 time /min
Description

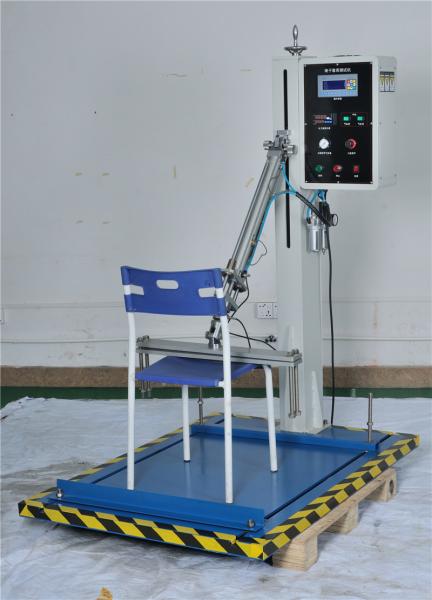

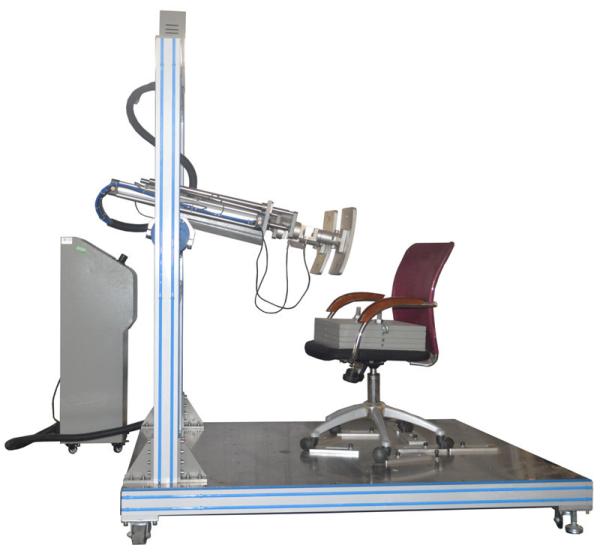

Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test

MAIN FUNCTION:
The machine is designed to test back by specified load block with setting force and speed, to assess chair back durability.

GENERAL SPECIFICATION:
Packaging Dimensions: (W*D*H) 1700*1450*2200mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: About 500kg
HS Code: 9024800000

TEST STANDARD:BIFMA X5.1 2017

STANDARD FEATURES:

Force actuator height500-1200 mm(adjustable)
Test cycle0～999,999 (adjustable)
Test speed0～30 time /min
Back load5～100kg
Air requirementCompressed air 6 kg/cm2
Holding and cyclic time0～99S
Control modelPLC, Programmable controller
PowerOne phase, AC 220V, 50Hz.
DisplayTouch screen
Machine size1700x1450x2100mm(L*W*H)


APPLICATION:
Test Times in 1 ~ 999999 times can be set arbitrarily, automatically stop after reaching the determination number;
Touch screen +PLC control, test force, test times and other data can be set;
Travel limit protection, leakage protection design, to ensure safe operation;
With power off memory and power off protection alarm and other functions, the next power use, you can view the last test data or continue to test.

CONFIGURATION:

ConfigurationNameDetails






Items

Documents

Operation Manual*1 piece;
Operation Video in USB flash disk with machine*1 piece
Factory Inspection Report*1 piece;

Power line1 piece
Plug1 piece(Per your local plug standard)
USB cable1 piece
USB flash disk1G capacity *1 piece
Load Sensor200kg Capacity *1 piece
Chair back loading pad1 set
Chair seat fixing fixture1 set
Chair leg fixing block1 set

Automatic Furniture Testing Machines / Office Chair Back Impact Durability Test
HAIDA INTRODUCTION

Founded in 2004, QTS Group is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
